Description:The ISL8023 is a highly efficient, monolithic, synchronous step-down DC/DC converter that can deliver 3A of continuous output current from a 2.7V to 5.5V input supply. The device uses current mode control architecture to deliver very low-duty cycle operation at high frequency with fast transient response and excellent loop stability. It has an adjustable frequency from 500kHz to 4MHz with the default at 1MHz (ISL8023/24).The ISL8023 and ISL8024 integrate a very low On-resistance P-Channel (45mΩ) high side F
A good PCB layout for the ISL8023IRTAJZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
The ISL8023IRTAJZ has an operating ambient temperature range of -40°C to +85°C. However, the device can be operated at a higher temperature range with derating. It's essential to consult the datasheet and thermal management guidelines to ensure reliable operation.
Yes, the ISL8023IRTAJZ is suitable for high-reliability applications. It's manufactured using a robust process, and the device is designed to meet the requirements of automotive and industrial applications. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the ISL8023IRTAJZ, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values to ensure they meet the recommended specifications. Use an oscilloscope to measure the output voltage ripple and noise. If the issue persists, consult the datasheet and application notes or contact Renesas Electronics Corporation's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8023IRTAJZ Overview

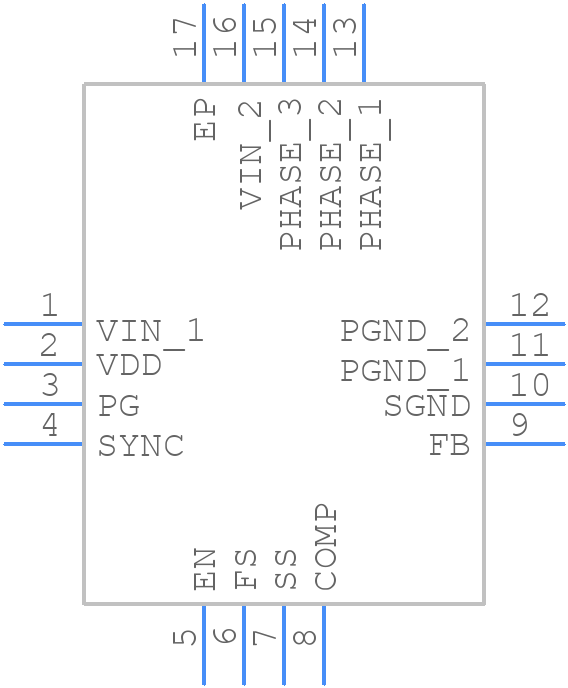

Use the download button to access the ISL8023IRTAJZ schematic symbol, PCB footprint, and 3D model.
