ISL8118IRZ - Renesas Electronics

Description: The ISL8118 is a single-phase PWM controller featuring an input voltage range of +3.3V to +20V and integrated MOSFET drivers. Utilizing voltage-mode operation with input voltage feed-forward compensation, the ISL8118 maintains a constant loop gain, providing optimal transient response for applications with a wide input operating voltage range. The output voltage can be precisely regulated down to 0.591V with a system tolerance of ±1.0% over the industrial temperature range and line and load variations. A ex

Download ISL8118IRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

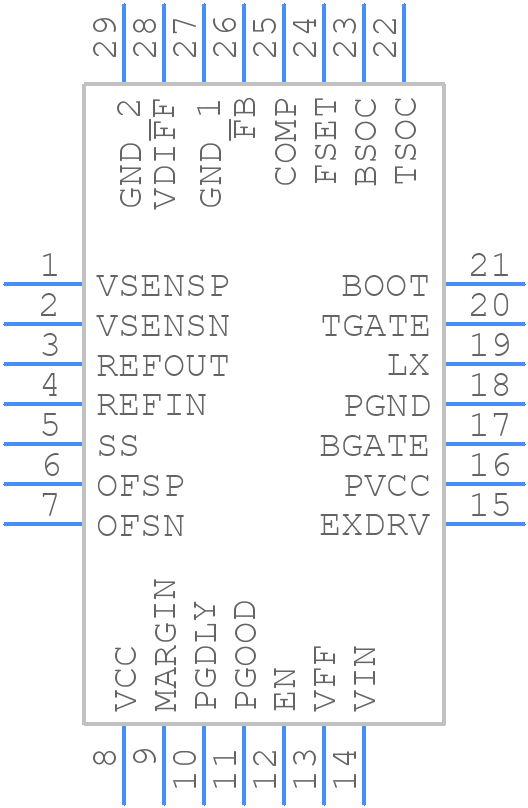

ISL8118IRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL8118IRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28 Ld 5x5 QFN
click to zoom
3D Models
ISL8118IRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - 28 Ld 5x5 QFN
click to zoom

ISL8118IRZ Details

  • Manufacturer Part Number:

    ISL8118IRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    L28.5X5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-23

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    IT HAS INPUT VOLTAGE FRM 3 TO 20V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.6 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.05 mm

  • Supply Current-Max (Isup):

    13 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ISL8118IRZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL8118IRZ evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Renesas provides a configuration tool, the ISL8118IRZ-EVALZ evaluation board software, which allows users to easily configure the device's settings, such as output voltage, switching frequency, and soft-start timing, to optimize performance for their specific application.
  • Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output capacitors. The specific capacitor values and types may vary depending on the application's requirements, but Renesas provides guidance in the datasheet and application notes.
  • Renesas provides a troubleshooting guide in the ISL8118IRZ application note, which covers common issues and their solutions, such as checking for proper PCB layout, component selection, and configuration settings. Additionally, Renesas offers technical support and resources to help engineers debug and resolve issues.
  • Renesas provides thermal derating guidelines in the ISL8118IRZ datasheet, which specify the maximum junction temperature and power dissipation limits for the device. Engineers should ensure that their design meets these guidelines to prevent overheating and ensure reliable operation.
