Description:The ISL8201M is a 20V, 10A output current, variable output step-down power supply. Included in the 15mmx15mm package is a high performance PWM controller switching at 600kHz, power MOSFETs, an inductor, and all the passive components required for complete DC/DC power solution. The ISL8201M operates over an input voltage range of 1V to 20V and supports an output voltage range of 0. 6V to 5V, which is set by a single dividing resistor. This high efficiency power module is capable of delivering 10A (17A peak)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Implement overvoltage protection, undervoltage protection, and overcurrent protection to prevent damage to the device. Also, ensure the device operates within the recommended temperature range.
Exceeding the maximum ratings can lead to device failure, reduced lifespan, or even catastrophic failure. It's essential to operate the device within the recommended specifications to ensure reliable operation and prevent damage.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is operating within the recommended specifications. Check for any signs of overheating, and ensure the device is properly soldered and connected. Consult the datasheet and application notes for troubleshooting guidelines.
To minimize EMI and EMC issues, ensure proper PCB layout, use shielding, and implement filtering and decoupling. Follow the recommended layout and grounding guidelines in the datasheet and application notes. Consult with an EMI/EMC expert if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8201MIRZ-T Overview

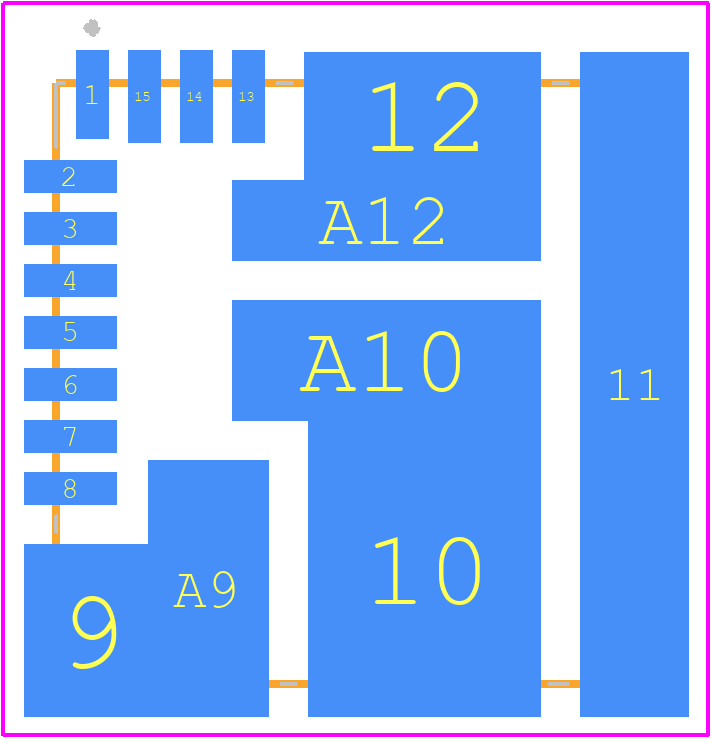

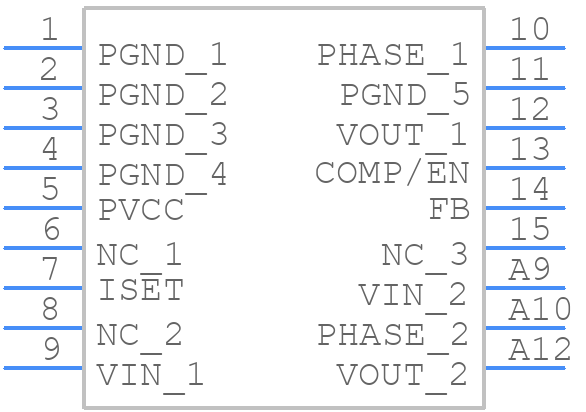

Use the download button to access the ISL8201MIRZ-T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL82,
or try a keyword search, such as Switching Regulator or Controllers
