Description:The ISL8201M is a 20V, 10A output current, variable output step-down power supply. Included in the 15mmx15mm package is a high performance PWM controller switching at 600kHz, power MOSFETs, an inductor, and all the passive components required for complete DC/DC power solution. The ISL8201M operates over an input voltage range of 1V to 20V and supports an output voltage range of 0. 6V to 5V, which is set by a single dividing resistor. This high efficiency power module is capable of delivering 10A (17A peak)
The ISL8201MIRZ can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 6.5V to 14V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a stable input voltage. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be improved by using a voltage reference IC.
The ISL8201MIRZ can provide a maximum output current of 1A, but the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the datasheet and application notes for specific guidance on output current capability.
The ISL8201MIRZ has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features to protect the device from damage. However, it's still essential to follow proper design and layout guidelines, including the use of a suitable input capacitor, output capacitor, and thermal management techniques to prevent overheating.
The ISL8201MIRZ is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation in high-temperature environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8201MIRZ Overview

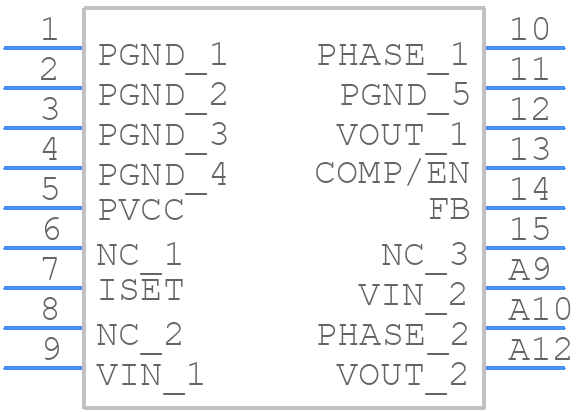

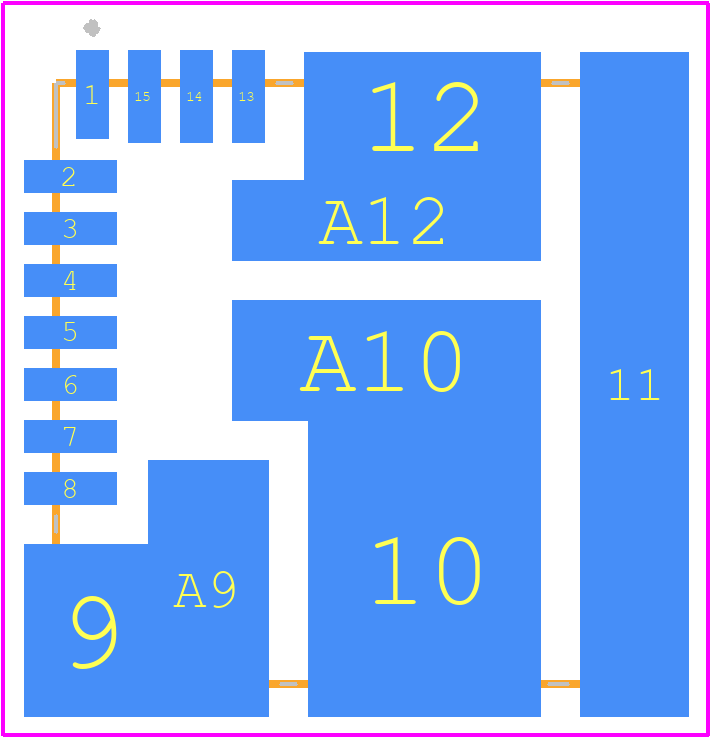

Use the download button to access the ISL8201MIRZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL82,
or try a keyword search, such as Switching Regulator or Controllers
