Description:The ISL8205M power module is a single channel synchronous step-down complete power supply, capable of delivering up to 5A of continuous current. Operating from a single 2. 6V to 5. 5V input power rail and integrating controller, power inductor and MOSFETs, the ISL8205M only requires a few external components to operate and is optimized for space constrained and portable battery operated applications. Based on current mode PWM control scheme, the ISL8205M provides a fast transient response and excellent loop
ALSO WORKS IN PFM MODE; OUTPUT VOLTAGE RANGE FROM 0.6 TO 5 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.6 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
R-PXMA-N22
JESD-609 Code:
e3
Length:
7.5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
22
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
5 A
Output Voltage-Nom:
1.2 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
1.95 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2070 kHz
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Position:
UNSPECIFIED
Width:
4.5 mm
ISL8205MIRZ-T Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout in the ISL8205MIRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable start-up and shutdown, it is recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet, and to use a soft-start circuit to limit the inrush current during power-up.
Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output, and a maximum ESR of 100mΩ for the output capacitor to ensure stable operation and minimize ripple voltage.
The ISL8205MIRZ-T has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features, but it is still recommended to add external protection circuits, such as a voltage supervisor or a crowbar circuit, to ensure robust protection against voltage transients and faults.
The ISL8205MIRZ-T is rated for operation from -40°C to +125°C, but it is recommended to derate the output current and voltage according to the temperature derating curves provided in the datasheet to ensure reliable operation over the entire temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8205MIRZ-T Overview

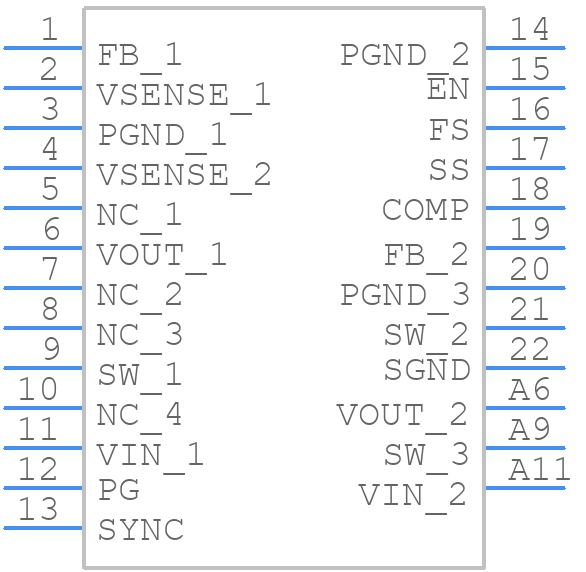

Use the download button to access the ISL8205MIRZ-T schematic symbol, PCB footprint, and 3D model.
