Description:The ISL8215M power module is a single-channel, synchronous step-down, non-isolated complete power supply, capable of delivering up to 15A of continuous current. Operating from a single 7V to 42V wide input power rail and integrating the controller, power inductor, and MOSFETs, the ISL8215M requires only a few external components to operate and is optimized for space constrained applications. The ISL8215M is based on a valley current mode PWM control scheme and provides fast transient response and excellent
Renesas provides a recommended PCB layout in the ISL8215MIRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable operation in high-vibration environments, it is recommended to follow proper PCB mounting and screwing procedures, and to use a robust and secure connector system. Additionally, Renesas recommends using a vibration-resistant capacitor and ensuring that the PCB is designed to withstand the expected vibration levels.
While the datasheet specifies a maximum input voltage of 28V, the maximum allowed input voltage ripple is not explicitly stated. According to Renesas, the recommended input voltage ripple is ≤ 1% of the nominal input voltage to ensure reliable operation and minimize the risk of overvoltage protection (OVP) triggering.
Yes, the ISL8215MIRZ-T can be used in a redundant power supply configuration. However, it is essential to ensure that the redundant power supplies are properly synchronized and that the output voltages are matched to prevent any potential issues. Renesas recommends consulting with their application engineers for specific guidance on implementing redundant power supply configurations.
Renesas provides a recommended EMI filter design in the ISL8215MIRZ-T datasheet and evaluation board user manual. The recommended design includes a π-filter configuration with a common-mode choke, X-capacitors, and Y-capacitors to minimize electromagnetic interference (EMI) and ensure compliance with relevant regulatory standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8215MIRZ-T Overview

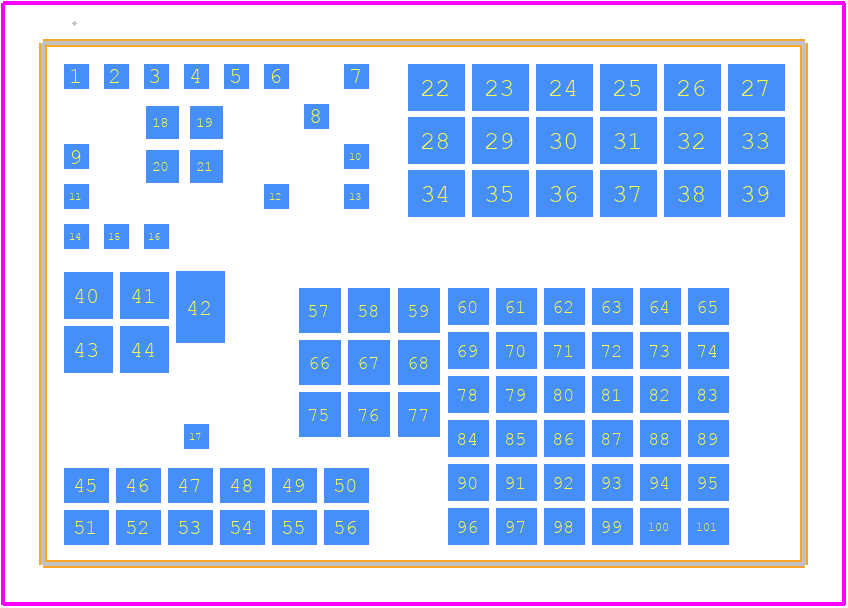

Use the download button to access the ISL8215MIRZ-T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL82,
or try a keyword search, such as Switching Regulator or Controllers
