ISL8215MIRZ - Renesas Electronics

ISL8215MIRZ Details

• Manufacturer Part Number:

  ISL8215MIRZ

• Brand Name:

  Renesas

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  Module

• Package Description:

  Module-22

• Pin Count:

  22

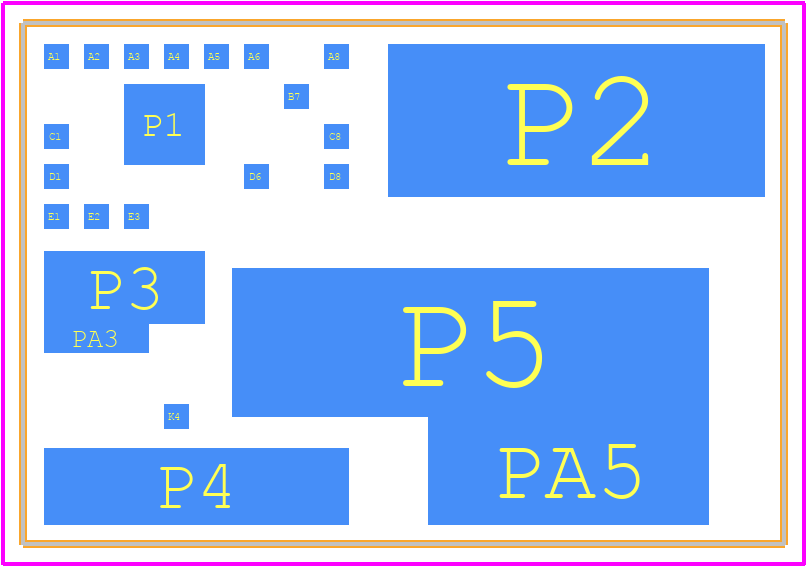

• Manufacturer Package Code:

  Y22.19X13

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  42 V

• Input Voltage-Min:

  7 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDMA-N22

• JESD-609 Code:

  e4

• Length:

  19 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  22

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  15 A

• Output Voltage-Max:

  12 V

• Output Voltage-Min:

  0.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  XMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Seated Height-Max:

  5.3 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2375 kHz

• Technology:

  HYBRID

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  NO LEAD

• Terminal Position:

  UNSPECIFIED

• Width:

  13 mm
