Description:The ISL8216M is a simple and easy to use, high voltage DC/DC module and is ideal for a wide variety of applications. It eliminates design and manufacturing risks while dramatically improving time to market. The simplicity is in the Off-The-Shelf unassisted implementation. All you need is the ISL8216M, input and output capacitors, and one resistor to program the output voltage and you have a complete high voltage power design ready for the market. The ISL8216M is packaged in a thermally enhanced, compact (15
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
Renesas recommends following their guidelines for vibration testing and design considerations in their application note AN1996. This includes using a robust PCB design, secure component mounting, and ensuring that the device is properly soldered and secured to the PCB.
Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output capacitors. The specific capacitor values and types may vary depending on the application and operating conditions, but Renesas provides general guidelines in their datasheet and application notes.
The ISL8216MIRZ-T has built-in overcurrent protection and fault detection features. Renesas recommends using the OCSET pin to set the overcurrent threshold and monitoring the FAULT pin for fault detection. Additional external circuitry may be required to implement custom fault detection and protection schemes.
Renesas recommends a specific startup sequence to ensure proper operation of the device. This includes applying the input voltage, followed by the enable signal, and then the output voltage. The specific sequence and timing may vary depending on the application, but Renesas provides general guidelines in their datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8216MIRZ-T Overview

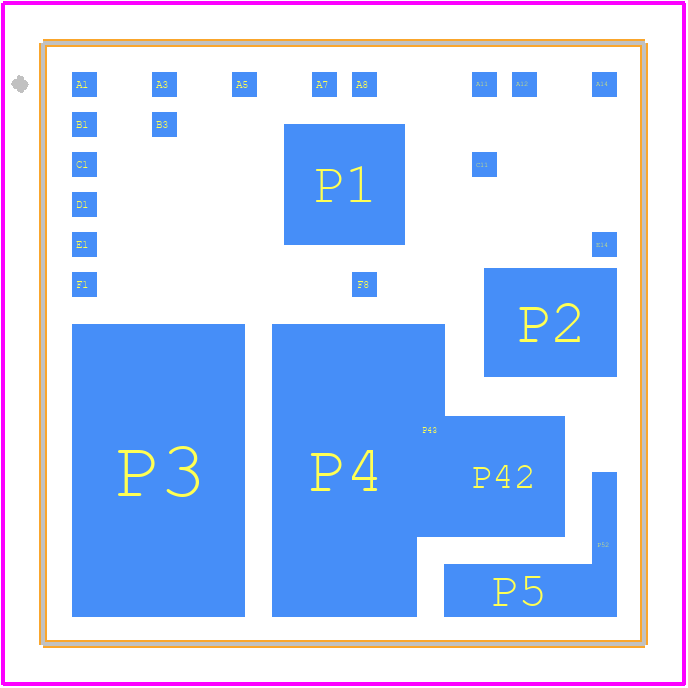

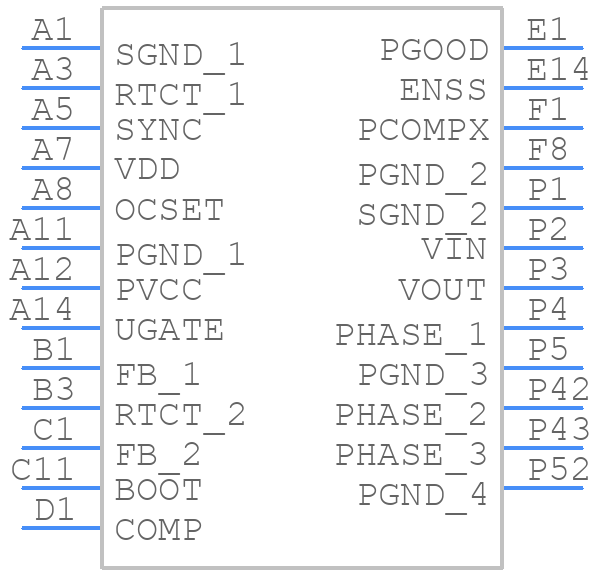

Use the download button to access the ISL8216MIRZ-T schematic symbol, PCB footprint, and 3D model.
