ISL8280MFRZ - Renesas Electronics

ISL8280MFRZ Details

• Manufacturer Part Number:

  ISL8280MFRZ

• Brand Name:

  Renesas

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  Module

• Package Description:

  MODULE-83

• Pin Count:

  83

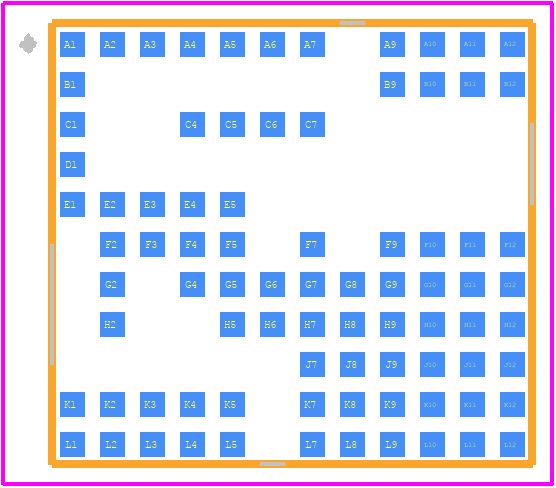

• Manufacturer Package Code:

  Y83.12X11

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Additional Feature:

  PULSE WIDTH MODULATION IS AVAILABLE

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE FREQUENCY MODULATION

• Input Voltage-Max:

  16.5 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PXMA-N83

• JESD-609 Code:

  e4

• Length:

  12 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  83

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  10 A

• Output Voltage-Max:

  5 V

• Output Voltage-Min:

  0.5 V

• Output Voltage-Nom:

  1 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  XMA

• Package Equivalence Code:

  MODULE,83LEAD,.43

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Seated Height-Max:

  5.3 mm

• Supply Current-Max (Isup):

  25 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  1130 kHz

• Technology:

  HYBRID

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1 mm

• Terminal Position:

  UNSPECIFIED

• Width:

  11 mm
