Description:The ISL83220E is a 3. 0V to 5. 5V powered RS-232 transmitter/receiver that meets ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. It provides ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Efficient on-chip charge pumps, coupled with a manual
A good PCB layout for the ISL83220ECVZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to choose the right output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
The ISL83220ECVZ-T can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V for optimal performance and reliability. Exceeding the maximum input voltage can cause damage to the device.
The power dissipation of the ISL83220ECVZ-T can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency of the device can be obtained from the datasheet or the manufacturer's website. It's essential to ensure that the device is operated within the recommended operating temperature range to prevent overheating.
The EN (Enable) pin on the ISL83220ECVZ-T is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL83220ECVZ-T Overview

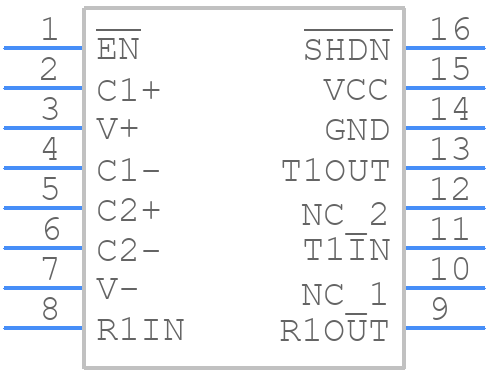

Use the download button to access the ISL83220ECVZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL83,
or try a keyword search, such as Line Driver or Receivers
