Description:The ISL83220E is a 3. 0V to 5. 5V powered RS-232 transmitter/receiver that meets ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. It provides ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Efficient on-chip charge pumps, coupled with a manual
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific requirements of your application, such as ripple current, voltage rating, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and following the guidelines in the datasheet for capacitor selection.
The ISL83220ECVZ is rated for operation from -40°C to +85°C ambient temperature, but the maximum junction temperature (TJ) should not exceed 125°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
Yes, the ISL83220ECVZ is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and testing guidelines to ensure compliance with the specific requirements of your application.
Renesas provides a troubleshooting guide in their application note AN1995, which covers common issues like oscillation, instability, and overvoltage protection. It's essential to follow the recommended design guidelines and troubleshooting procedures to identify and resolve issues quickly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL83220ECVZ Overview

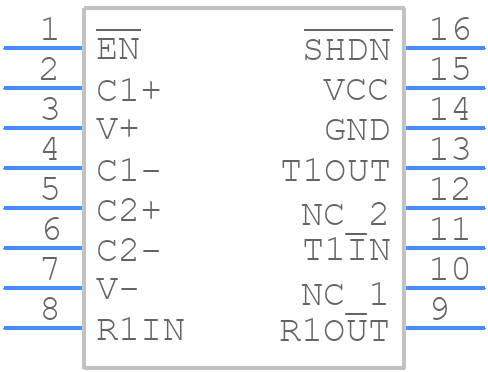

Use the download button to access the ISL83220ECVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL83,
or try a keyword search, such as Line Driver or Receivers
