Description:The ISL8485, ISL8490, and ISL8491 RS-485 / RS-422 devices are BiCMOS 5V powered, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. Unlike competitive devices, this family is specified for 10% tolerance supplies (4. 5V to 5. 5V). The ISL8485, ISL8490, and ISL8491 feature data rates up to 5Mbps. All devices present a single unit load to the RS-485 bus, which allows up to 32 transceivers on the network. The receiver (Rx) inputs feature a “fail-safe if open” design,
A good PCB layout for the ISL8491IBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power source and use a low-ESR capacitor for the VCC pin.
To ensure proper power-up and initialization of the ISL8491IBZ, make sure to follow the recommended power-up sequence, which involves applying VCC before EN. Also, ensure that the EN pin is driven high after VCC reaches its minimum operating voltage. Additionally, allow sufficient time for the device to initialize before transmitting data.
The maximum cable length supported by the ISL8491IBZ depends on the data rate and the type of cable used. As a general guideline, the device can support cable lengths up to 10 meters at 1 Mbps and 3 meters at 10 Mbps. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.
To troubleshoot issues with the ISL8491IBZ, start by checking the power supply and ensuring that the device is properly powered up and initialized. Verify that the clock signal is stable and within the recommended frequency range. Use a logic analyzer or oscilloscope to monitor the data transmission and check for errors. Also, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Yes, the ISL8491IBZ is designed to support hot-swap and hot-plug applications. The device has built-in protection against overvoltage, undervoltage, and overcurrent, making it suitable for use in applications where the device may be inserted or removed while the system is powered on. However, it's recommended to consult the datasheet and application notes for specific guidelines on implementing hot-swap and hot-plug functionality.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8491IBZ Overview

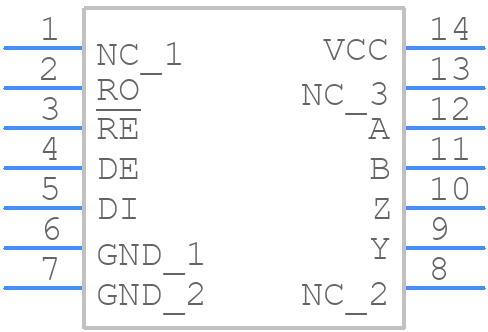

Use the download button to access the ISL8491IBZ schematic symbol, PCB footprint, and 3D model.
