Description:The ISL85012 is a highly efficient, monolithic, synchronous buck regulator that can deliver 12A of continuous output current from a 3.8V to 18V input supply. The device uses current mode control architecture with a fast transient response and excellent loop stability. The ISL85012 integrates very low ON-resistance high-side and low-side FETs to maximize efficiency and minimize external component count. The minimum BOM and easy layout footprint are extremely friendly to space constraint systems. The operatio
Renesas provides a recommended PCB layout in the ISL85012FRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
The ISL85012FRZ-T requires a proper bias voltage on the VIN pin during startup. Ensure that the input voltage is within the recommended range (4.5V to 18V) and that the EN pin is pulled high to enable the device. Additionally, add a capacitor between VIN and GND to filter out noise and ensure a stable input voltage.
The ISL85012FRZ-T is capable of delivering up to 12A of output current. However, the actual output current capability may be limited by the thermal performance of the PCB, the input voltage, and the output voltage. Be sure to check the thermal derating curves in the datasheet to ensure the device can deliver the required output current in your specific application.
The ISL85012FRZ-T has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it's still recommended to add external protection components, such as a TVS diode or a voltage supervisor, to ensure the device is protected from voltage transients and faults.
The recommended input capacitor value is 10uF to 22uF, with an X7R or X5R dielectric type. This ensures that the input voltage is properly filtered and that the device can operate within the recommended input voltage range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL85012FRZ-T Overview

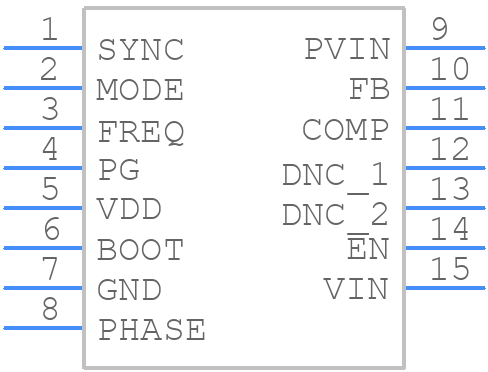

Use the download button to access the ISL85012FRZ-T schematic symbol, PCB footprint, and 3D model.
