Description:The ISL85412 is a 150mA synchronous buck regulator with an input range of 3. 5V to 40V. It provides an easy to use, high efficiency low BOM count solution for a variety of applications. The ISL85412 integrates both high-side and low-side NMOS FETs and features a PFM mode for improved efficiency at light loads. This feature can be disabled if forced PWM mode is desired. The part switches at a default frequency of 700kHz. By integrating both NMOS devices and providing internal configuration, minimal external
A good PCB layout for the ISL85412FRTZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to choose the right output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
The ISL85412FRTZ can handle a maximum input voltage of 18V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 15V for optimal performance and reliability.
The power dissipation of the ISL85412FRTZ can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The calculated power dissipation should be within the specified maximum power dissipation rating of the device.
The thermal resistance of the ISL85412FRTZ package (QFN-16) is 45°C/W (junction-to-ambient) and 10°C/W (junction-to-case). This information is essential for thermal design and heat sink selection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL85412FRTZ Overview

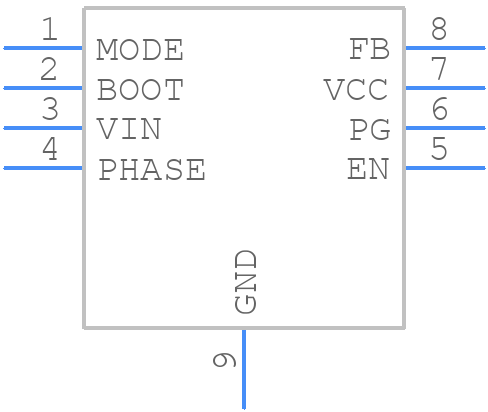

Use the download button to access the ISL85412FRTZ schematic symbol, PCB footprint, and 3D model.
