Description:The ISL85413 is a 300mA synchronous buck regulator with an input range of 3. 5V to 40V. It provides an easy to use, high efficiency low BOM count solution for a variety of applications. The ISL85413 integrates both high-side and low-side NMOS FETs and features a PFM mode for improved efficiency at light loads. This feature can be disabled if forced PWM mode is desired. The part switches at a default frequency of 700kHz. By integrating both NMOS devices and providing internal configuration, minimal external
A good PCB layout for the ISL85413FRTZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with additional capacitors if the device is far from the power source.
The maximum ambient temperature range for the ISL85413FRTZ is -40°C to +125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
Yes, the ISL85413FRTZ is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the ISL85413FRTZ, start by checking the input and output voltages, as well as the device's operating frequency. Verify that the component values and PCB layout meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for guidance or contact Renesas Electronics Corporation's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL85413FRTZ Overview

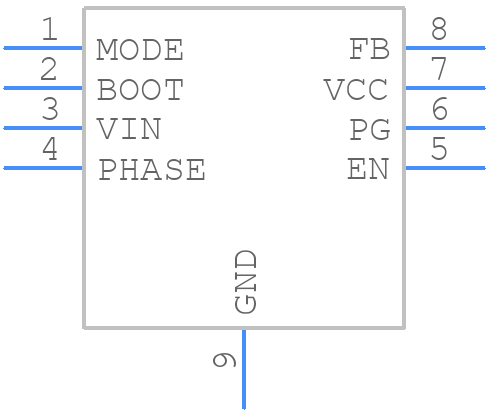

Use the download button to access the ISL85413FRTZ schematic symbol, PCB footprint, and 3D model.
