ISL88706IB831Z-TK - Renesas Electronics

Description: Designed with high reset threshold accuracy and low power consumption, the ISL88705, ISL88706, ISL88707, ISL88708, ISL88716 and ISL88813 devices are microprocessor supervisors that are designed to monitor power-supply and battery functions in microprocessor systems. They can help to lower system cost, reduce board space requirements and increase the reliability of systems. These devices provide essential functions such as supply voltage supervision by asserting a reset output during power-up and power-down

Download ISL88706IB831Z-TK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

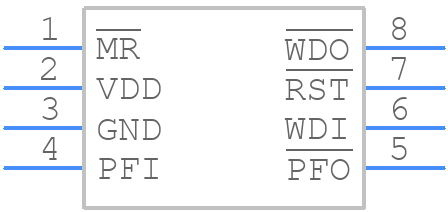

ISL88706IB831Z-TK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL88706IB831Z-TK - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8 Ld SOIC *-3
click to zoom
3D Models
ISL88706IB831Z-TK - Renesas Electronics - 3D model - Small Outline Packages - 8 Ld SOIC *-3
click to zoom

ISL88706IB831Z-TK Details

  • Manufacturer Part Number:

    ISL88706IB831Z-TK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-24

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    127

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    19 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.09V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL88706IB831Z-TK Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • Renesas provides an inductor selection guide in their application note AN1964, which includes guidelines for selecting the right inductor based on the device's operating frequency, output voltage, and current requirements.
  • Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor, depending on the input voltage and current requirements. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ripple.
  • The ISL88706IB831Z-TK has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold and the device's internal OCP voltage reference.
  • Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 47uF for the output capacitor, depending on the output voltage and current requirements. The capacitor should be placed as close as possible to the VOUT pin to minimize noise and ripple.
