ISL88706IB831Z - Renesas Electronics

Description: Designed with high reset threshold accuracy and low power consumption, the ISL88705, ISL88706, ISL88707, ISL88708, ISL88716 and ISL88813 devices are microprocessor supervisors that are designed to monitor power-supply and battery functions in microprocessor systems. They can help to lower system cost, reduce board space requirements and increase the reliability of systems. These devices provide essential functions such as supply voltage supervision by asserting a reset output during power-up and power-down

Download ISL88706IB831Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

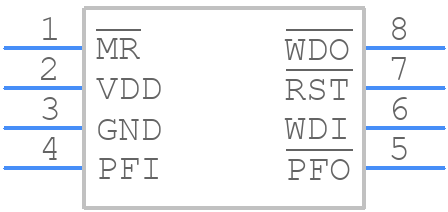

Symbol
ISL88706IB831Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL88706IB831Z - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ISL88706IB831Z - Renesas Electronics - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ISL88706IB831Z Details

  • Manufacturer Part Number:

    ISL88706IB831Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    127

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    19 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.09V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL88706IB831Z Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • Renesas recommends using an inductor with a minimum inductance of 1.5μH and a maximum DCR of 1.5Ω. The inductor selection guide in the datasheet provides more details on how to choose the correct inductor based on the output current and voltage requirements.
  • The maximum junction temperature (Tj) for the ISL88706IB831Z is 150°C. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • While the ISL88706IB831Z can operate up to 150°C, it's essential to consider the derating curves in the datasheet to ensure the device can handle the expected temperature range. Additionally, it's recommended to consult with Renesas' application engineers for specific guidance on high-temperature applications.
  • The ISL88706IB831Z has a built-in OCP feature that can be enabled by connecting the OCP pin to the VIN pin. The OCP threshold is set to 2.5A, but it can be adjusted by adding an external resistor between the OCP pin and the VIN pin. Refer to the datasheet for more details on OCP implementation.
