ISL88708IB831Z-TK - Renesas Electronics

Description: Designed with high reset threshold accuracy and low power consumption, the ISL88705, ISL88706, ISL88707, ISL88708, ISL88716 and ISL88813 devices are microprocessor supervisors that are designed to monitor power-supply and battery functions in microprocessor systems. They can help to lower system cost, reduce board space requirements and increase the reliability of systems. These devices provide essential functions such as supply voltage supervision by asserting a reset output during power-up and power-down

Download ISL88708IB831Z-TK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

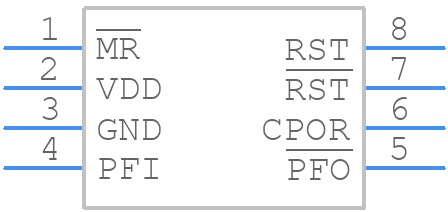

Symbol
ISL88708IB831Z-TK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL88708IB831Z-TK - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8 Ld SOIC *-7
click to zoom
3D Models
ISL88708IB831Z-TK - Renesas Electronics - 3D model - Small Outline Packages - 8 Ld SOIC *-7
click to zoom

ISL88708IB831Z-TK Details

  • Manufacturer Part Number:

    ISL88708IB831Z-TK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-24

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    127

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    19 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.09V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL88708IB831Z-TK Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • Renesas recommends using an inductor with a minimum inductance of 1.5μH and a maximum DCR of 100mΩ. The inductor should also be able to handle the maximum output current and have a suitable saturation current rating. Refer to the datasheet and application notes for more guidance on inductor selection.
  • The maximum junction temperature (Tj) for the ISL88708IB831Z-TK is 125°C. Operating the device above this temperature can reduce its reliability and lifespan.
  • The ISL88708IB831Z-TK has built-in OVP and UVP features. OVP is set to 5.5V by default, and UVP is set to 4.3V by default. These thresholds can be adjusted using external resistors. Refer to the datasheet and application notes for more information on implementing OVP and UVP.
  • Renesas recommends using a high-quality, low-ESR ceramic capacitor with a value of 10μF to 22μF for the input capacitor. The capacitor should be able to handle the maximum input voltage and have a suitable ripple current rating.
