ISL9000AIRNNZ - Renesas Electronics

Description: ISL9000A is a high performance dual LDO capable of sourcing 300mA current from each output. It has a low standby current and very high PSRR and is stable with output capacitance of 1µF to 10µF with ESR of up to 200mΩ. The device integrates an individual Power-On-Reset (POR) function for each output. The POR delay for VO2 can be externally programmed by connecting a timing capacitor to the CPOR pin. The POR delay for VO1 is internally fixed at approximately 2ms. A reference bypass pin is also provided for co

Download ISL9000AIRNNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

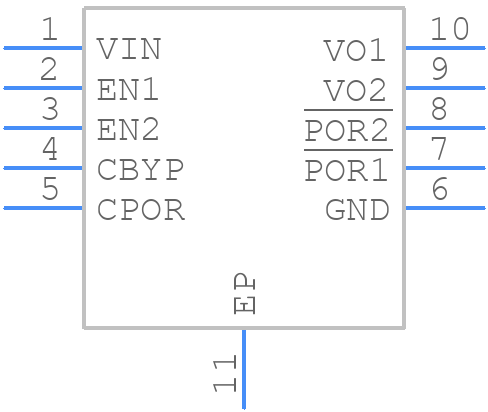

ISL9000AIRNNZ - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - (10 LD 3X3 DFN)
click to zoom
3D Models
ISL9000AIRNNZ - Renesas Electronics  - 3D model - Small Outline No-lead - (10 LD 3X3 DFN)
click to zoom

ISL9000AIRNNZ Details

  • Manufacturer Part Number:

    ISL9000AIRNNZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-26

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

ISL9000AIRNNZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal gradients. Additionally, consider using thermal simulation tools to optimize the design.
  • Not using the recommended input and output capacitors can lead to reduced stability, increased noise, and decreased efficiency. It is essential to follow the recommended capacitor values and types to ensure optimal performance.
  • Check the power-good output voltage level, ensure that the input voltage is within the recommended range, and verify that the device is properly configured. If issues persist, consult the datasheet and application notes for troubleshooting guidelines.
  • Follow the recommended PCB layout and component placement guidelines to minimize EMI. Ensure that the device is properly shielded, and consider using EMI filters or common-mode chokes to reduce emissions.
