ISL9005AIRCZ-T - Renesas Electronics

Description: ISL9005A is a high performance Low Dropout linear regulator capable of sourcing 300mA current. It has a low standby current and high-PSRR and is stable with output capacitance of 1µF to 10µF with ESR of up to 200mΩ. The ISL9005A has a high PSRR of 75dB and an output noise of less than 45µVRMS. When coupled with a no load quiescent current of 50µA, (typical) and 0. 1µA shutdown current, the ISL9005A is an ideal choice for portable wireless equipment. Several different fixed voltage outputs are standard. Outp

Download ISL9005AIRCZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

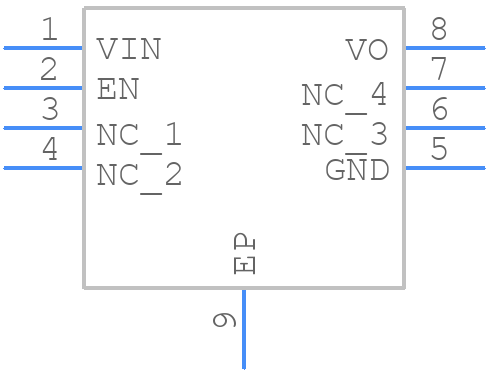

ISL9005AIRCZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9005AIRCZ-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L8.2x3+
click to zoom
3D Models
ISL9005AIRCZ-T - Renesas Electronics - 3D model - Small Outline No-lead - L8.2x3+
click to zoom

ISL9005AIRCZ-T Details

  • Manufacturer Part Number:

    ISL9005AIRCZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    DFN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.2X3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-26

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    7.1 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.8324 V

  • Output Voltage1-Min:

    1.7676 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    2 mm

ISL9005AIRCZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL9005AIRCZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • To ensure the device operates within the specified junction temperature range, it's essential to provide adequate heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Additionally, monitor the device's thermal performance and adjust the system design as needed to prevent overheating.
  • Operating the ISL9005AIRCZ-T beyond the recommended input voltage range can lead to reduced performance, increased power consumption, and potentially even damage to the device. It's essential to ensure the input voltage remains within the specified range to guarantee reliable operation and prevent damage.
  • To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage, output load, and feedback resistors are within the specified ranges. Check for any signs of overheating, and ensure the device is properly soldered and connected. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • To minimize EMI and EMC issues, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and ensure the device is properly decoupled. Additionally, consult the datasheet and application notes for specific guidance on EMI and EMC considerations for the ISL9005AIRCZ-T.
