Description:The ISL9110 and ISL9112 are highly-integrated Buck-Boost switching regulators that accept input voltages either above or below the regulated output voltage. Unlike other Buck-Boost regulators, these regulators automatically transition between operating modes without significant output disturbance.Both parts are capable of delivering up to 1.2A output current, and provide excellent efficiency due to their fully synchronous 4-switch architecture. No-load quiescent current of only 35µA also optimizes efficienc
Renesas provides a recommended PCB layout in the ISL9110BIRTAZ evaluation board user manual, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize noise and thermal issues.
Renesas provides a component selection guide in the ISL9110BIRTAZ datasheet, which includes formulas and guidelines for selecting the optimal inductor, input and output capacitors, and other external components based on the specific application requirements.
The ISL9110BIRTAZ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance, such as efficiency and output voltage regulation, may degrade at higher temperatures. Renesas provides thermal derating guidelines in the datasheet to help designers ensure reliable operation within the specified temperature range.
The ISL9110BIRTAZ has built-in overcurrent protection and short-circuit protection features. To implement these features, designers can use the device's OCSET pin to set the overcurrent threshold and the EN pin to enable or disable the device. Additionally, Renesas provides guidelines for implementing external protection circuits in the datasheet and application notes.
The recommended startup sequence for the ISL9110BIRTAZ is to first apply the input voltage, then enable the device using the EN pin. This sequence helps ensure that the device starts up correctly and avoids any potential issues with output voltage regulation or overcurrent protection. Renesas provides more detailed guidelines on startup sequencing in the datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL9110BIRTAZ Overview

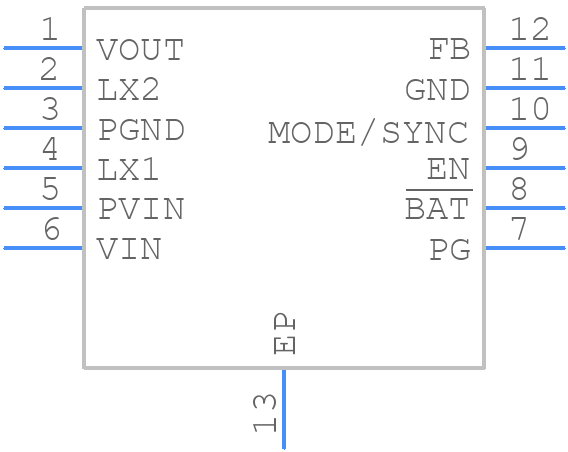

Use the download button to access the ISL9110BIRTAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL91,
or try a keyword search, such as Switching Regulator or Controllers
