Description:The ISL9110 and ISL9112 are highly-integrated Buck-Boost switching regulators that accept input voltages either above or below the regulated output voltage. Unlike other Buck-Boost regulators, these regulators automatically transition between operating modes without significant output disturbance.Both parts are capable of delivering up to 1.2A output current, and provide excellent efficiency due to their fully synchronous 4-switch architecture. No-load quiescent current of only 35µA also optimizes efficienc
Renesas provides a recommended PCB layout in the ISL9112 evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To optimize output voltage accuracy and stability, ensure that the input voltage is within the recommended range, use a high-quality output capacitor with low ESR, and minimize noise and ripple on the input and output lines. Additionally, consider using a voltage reference IC or a precision resistor divider network to improve output voltage accuracy.
While the datasheet does not specify a maximum allowable input voltage ripple, Renesas recommends keeping the input voltage ripple below 10% of the nominal input voltage to ensure stable operation and prevent oscillations or shutdown.
Yes, the ISL9112IRT7Z is rated for operation up to 125°C, but it's essential to ensure that the device is properly derated for temperature, and the PCB design takes into account thermal management and heat dissipation. Consult the datasheet and application notes for guidance on high-temperature operation.
To troubleshoot issues with the ISL9112IRT7Z, start by verifying the input voltage, output voltage, and current levels. Check for proper PCB layout, component selection, and soldering quality. Consult the datasheet, application notes, and Renesas support resources for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL9112IRT7Z Overview

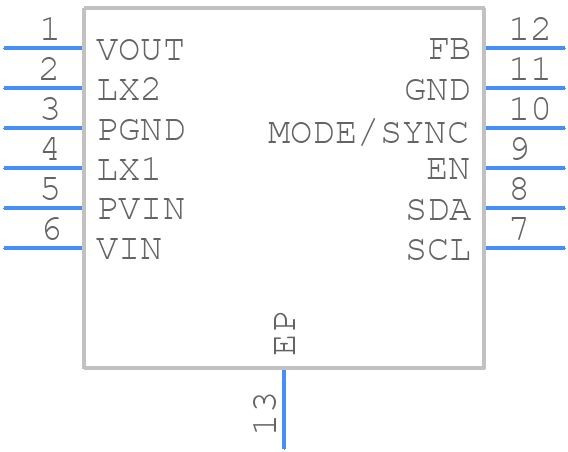

Use the download button to access the ISL9112IRT7Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL91,
or try a keyword search, such as Switching Regulator or Controllers
