ISL9113AIRAZ-T - Renesas Electronics

Description: The ISL9113A provides a power supply solution for devices powered by three-cell alkaline, NiCd, NiMH, or one-cell Li-Ion/Li-Polymer batteries. It offers either a fixed 5V or an adjustable output option for USB-OTG or portable HDMI applications. The device is guaranteed to supply 500mA from a 3V input and 5V output, and has a typical 1. 3A peak current limit. High 1. 8MHz switching frequency allows for the use of tiny, low-profile inductors, and ceramic capacitors to minimize the size of the overall solution

Download ISL9113AIRAZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

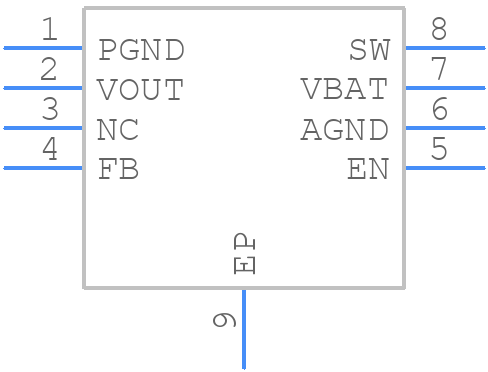

ISL9113AIRAZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9113AIRAZ-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 Ld 2x2 DFN
click to zoom
3D Models
ISL9113AIRAZ-T - Renesas Electronics - 3D model - Small Outline No-lead - 8 Ld 2x2 DFN
click to zoom

ISL9113AIRAZ-T Details

  • Manufacturer Part Number:

    ISL9113AIRAZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.2X2D

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-14

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Additional Feature:

    OUTPUT IN ADJUSTABLE MODE IS 4.9V TO 5.2V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    4.7 V

  • Input Voltage-Min:

    0.8 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ISL9113AIRAZ-T Frequently Asked Questions (FAQs)

  • The ISL9113AIRAZ-T can handle a maximum input voltage of 15V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be improved by using a voltage reference IC.
  • The ISL9113AIRAZ-T can provide a maximum output current of 1.2A, but it's recommended to operate within the specified output current range of 0.1mA to 1.2A for optimal performance and reliability.
  • To protect the ISL9113AIRAZ-T from overheating, it's essential to ensure good thermal design, use a suitable heat sink, and operate the device within the specified temperature range of -40°C to 125°C. Additionally, the device has built-in thermal protection, which will shut down the device if the junction temperature exceeds 150°C.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. The EN pin can be used to implement power sequencing, shutdown, or low-power modes in the system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL9113AIRAZ-T Overview

Use the download button to access the ISL9113AIRAZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL91, or try a keyword search, such as Switching Regulator or Controllers
