ISL9113EIAZ-T - Renesas Electronics

Description: The ISL9113 provides a power supply solution for devices powered by three-cell alkaline, NiCd, NiMH or one-cell Li-Ion/Li-Polymer batteries. It offers either a fixed 5V or an adjustable output option for USB-OTG or portable HDMI applications. The device is guaranteed to supply 500mA from a 3V input and 5V output and has a typical 1.3A peak current limit. High 1.8MHz switching frequency allows for the use of tiny, low-profile inductors and ceramic capacitors to minimize the size of the overall solution.The I

Download ISL9113EIAZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

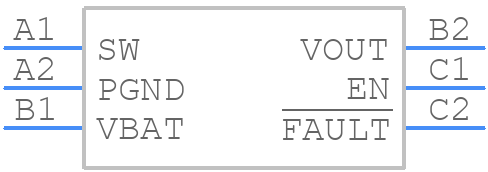

ISL9113EIAZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9113EIAZ-T - Renesas Electronics PCB footprint - BGA - BGA - ISL9113EIAZ-T 6pin
click to zoom
3D Models
ISL9113EIAZ-T - Renesas Electronics - 3D model - BGA - ISL9113EIAZ-T 6pin
click to zoom

ISL9113EIAZ-T Details

  • Manufacturer Part Number:

    ISL9113EIAZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-BP

  • Package Description:

    WLCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    W3X2.6

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-14

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Additional Feature:

    ADJUSTABLE VOUT=(3-5.2 VOLT)

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    4.7 V

  • Input Voltage-Min:

    0.8 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.36 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.55 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.8 mm

ISL9113EIAZ-T Frequently Asked Questions (FAQs)

  • The ISL9113EIAZ-T can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 2.5V to 12V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor between the VOUT and GND pins.
  • The ISL9113EIAZ-T can provide a maximum output current of 1.2A, but it's recommended to operate within the specified output current range of 0.1A to 1.2A for optimal performance and reliability.
  • To protect the ISL9113EIAZ-T from overheating, it's essential to ensure good thermal design, use a suitable heat sink, and operate the device within the specified temperature range of -40°C to 125°C. Additionally, the device has built-in thermal protection, which will shut down the device if the junction temperature exceeds 150°C.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. The EN pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
