ISL9113ER7Z-T - Renesas Electronics

Description: The ISL9113 provides a power supply solution for devices powered by three-cell alkaline, NiCd, NiMH or one-cell Li-Ion/Li-Polymer batteries. It offers either a fixed 5V or an adjustable output option for USB-OTG or portable HDMI applications. The device is guaranteed to supply 500mA from a 3V input and 5V output and has a typical 1.3A peak current limit. High 1.8MHz switching frequency allows for the use of tiny, low-profile inductors and ceramic capacitors to minimize the size of the overall solution.The I

Download ISL9113ER7Z-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

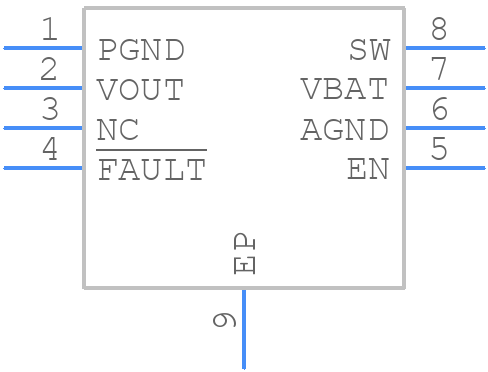

Symbol
ISL9113ER7Z-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9113ER7Z-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L8.2x2D
click to zoom
3D Models
ISL9113ER7Z-T - Renesas Electronics - 3D model - Small Outline No-lead - L8.2x2D
click to zoom

ISL9113ER7Z-T Details

  • Manufacturer Part Number:

    ISL9113ER7Z-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.2X2D

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-14

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    4.7 V

  • Input Voltage-Min:

    0.8 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ISL9113ER7Z-T Frequently Asked Questions (FAQs)

  • The ISL9113ER7Z-T can handle a maximum input voltage of 15V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a sufficient output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be improved by using a voltage reference IC.
  • The ISL9113ER7Z-T can provide a maximum output current of 1.2A, but it's recommended to operate within the specified output current range of 10mA to 1A for optimal performance and reliability.
  • To protect the ISL9113ER7Z-T from overheating, ensure that the device is operated within the specified temperature range of -40°C to 85°C, and provide adequate heat dissipation using a heat sink or thermal pad. Additionally, monitor the device's junction temperature and reduce the output current if necessary.
  • Yes, the ISL9113ER7Z-T is rated for operation in high-temperature environments up to 85°C, but it's essential to ensure that the device is properly heat-sinked and that the junction temperature is within the specified range.
