ISL9301IRZ - Renesas Electronics

Description: The ISL9301 is a fully integrated high input voltage single-cell Li-ion battery charger with power path management function. This charger performs the CC/CV charge function required by Li-ion batteries. The charger accepts an input voltage up to 28V but is disabled when the input voltage exceeds 10.5V OVP threshold. The 28V rating eliminates the overvoltage protection circuit required in a low-voltage charger. The charge current and the end-of-charge (EOC) current are programmable with external resistors. W

Download ISL9301IRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

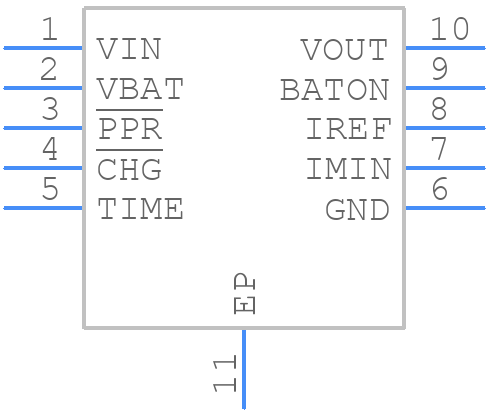

Symbol
ISL9301IRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9301IRZ - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L10.3x3C- DFN--1
click to zoom
3D Models
ISL9301IRZ - Renesas Electronics - 3D model - Small Outline No-lead - L10.3x3C- DFN--1
click to zoom

ISL9301IRZ Details

  • Manufacturer Part Number:

    ISL9301IRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-15

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    RECHARGE VOLTAGE THRESHOLD IS -150 MV;MAXIMUM SUPPLY VOLATGE RANGE IS 28V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL9301IRZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines. Avoid routing sensitive signals near the switching node.
  • Monitor the IC's junction temperature (TJ) and ensure it stays below the maximum rating of 125°C. Calculate the power dissipation (PD) and ensure it's within the SOA. Use thermal design and simulation tools to optimize the PCB layout and thermal management.
  • Choose capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. Ensure the capacitors are placed close to the IC and connected with short, wide traces. X5R or X7R ceramic capacitors are recommended.
  • Use the datasheet's recommended compensation network values as a starting point. Adjust the values based on the specific application's requirements and PCB layout. Use simulation tools to optimize the compensation network for stability and transient response.
  • Use a shielded enclosure, and ensure the PCB layout minimizes radiated emissions. Use a common-mode choke and Y-capacitors to filter the input and output lines. Follow good EMC design practices, such as keeping sensitive signals away from the switching node.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL9301IRZ Overview

Use the download button to access the ISL9301IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL93, or try a keyword search, such as Power Management Circuits
