ISL94202IRTZ - Renesas Electronics

Description: The ISL94202 is a battery pack monitor IC that supports from three to eight series connected cells. It provides complete battery monitoring and pack control. The ISL94202 provides automatic shutdown and recovery from out-of-bounds conditions and automatically controls pack cell balancing. The ISL94202 is highly configurable as a stand-alone unit, but can be used with an optional external Microcontroller (MCU), which communicates to the ISL94202 through an I2C interface. The ISL94202 supersedes the ISL94203

Download ISL94202IRTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

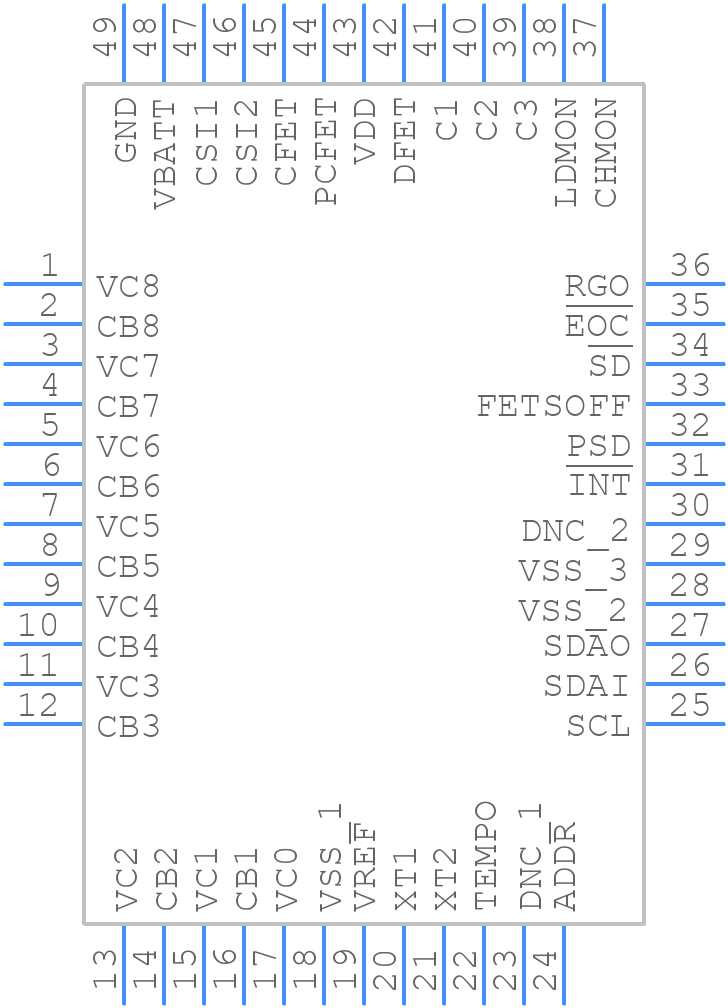

Symbol
ISL94202IRTZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL94202IRTZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 Ld TQFN
click to zoom
3D Models
ISL94202IRTZ - Renesas Electronics - 3D model - Quad Flat No-Lead - 48 Ld TQFN
click to zoom

ISL94202IRTZ Details

  • Manufacturer Part Number:

    ISL94202IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    L48.6X6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    26.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ISL94202IRTZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the switching node (SW pin) away from sensitive analog circuits and use a shielded inductor to reduce EMI.
  • Use the recommended compensation network values in the datasheet as a starting point. Then, adjust the values based on the specific application's requirements and PCB layout. A good starting point is to set the compensation capacitor (CC) to 10nF and the compensation resistor (RC) to 1kΩ.
  • The maximum allowed input voltage ripple is 10% of the input voltage. To minimize it, use a high-quality input capacitor with low ESR, and consider adding a filter capacitor (e.g., 10uF) in parallel with the input capacitor.
  • Use a soft-start circuit to limit the inrush current during startup. During shutdown, ensure the input voltage decays slowly to prevent the device from operating in an undefined state. A simple RC circuit can be used to slow down the input voltage decay.
  • Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the device, and consider using a thermal interface material (TIM) to improve heat transfer. Operate the device within its recommended temperature range (-40°C to 125°C) and consider derating the output current at high temperatures.
