Description:The ISL94203 is a Li-ion battery monitor IC that supports from 3 to 8 series connected cells. It provides full battery monitoring and pack control. The ISL94203 provides automatic shutdown and recovery from out of bounds conditions and automatically controls pack cell balancing. The ISL94203 is highly configurable as a stand-alone unit, but can be used with an external microcontroller, which communicates to the IC through an I2C interface.
Renesas provides a recommended PCB layout guide in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISL94203IRTZ can be configured for different battery chemistries by adjusting the voltage and current settings through the I2C interface. Renesas provides a battery configuration guide in the application note AN1964, which includes settings for common battery chemistries such as Li-ion, Li-polymer, and NiMH.
The ISL94203IRTZ has an operating temperature range of -40°C to +85°C, but it can be extended to -40°C to +105°C with proper thermal management and derating. Refer to the datasheet for more information on thermal derating and design considerations.
The ISL94203IRTZ has a built-in overcharge protection feature that can be enabled through the I2C interface. The device monitors the battery voltage and current, and will automatically disconnect the charging source when the battery reaches a predetermined voltage or current threshold. Refer to the datasheet for more information on configuring overcharge protection.
Yes, the ISL94203IRTZ is designed to operate in high-vibration environments. Renesas has tested the device to withstand vibrations up to 10G peak acceleration, making it suitable for use in automotive, industrial, and other applications where vibration is a concern.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL94203IRTZ Overview

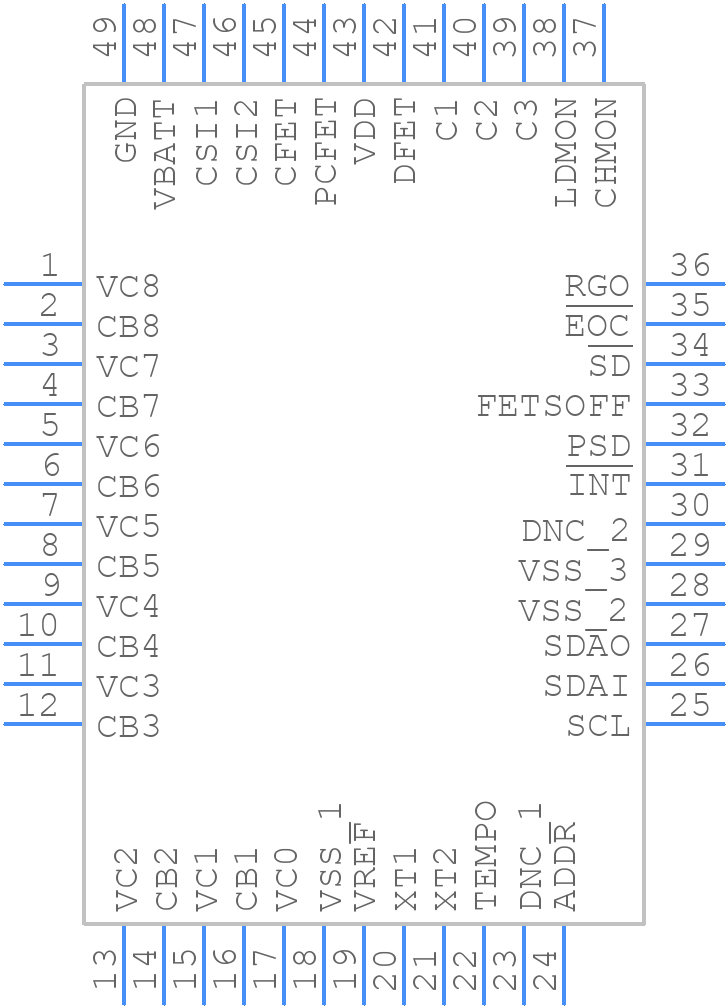

Use the download button to access the ISL94203IRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL94,
or try a keyword search, such as Power Management Circuits
