Description:The ISL94208 battery front end IC is designed for use with a microcontroller and features an analog front-end with overcurrent protection for multi-cell Li-ion battery packs. The ISL94208 supports battery packs consisting of four to six cells in series and one or more cells in parallel. Using an internal analog multiplexer, the ISL94208 allows a separate microcontroller with an A/D converter to monitor each cell voltage plus internal and external temperature. The ISL94208 provides integral overcurrent and s
Renesas provides a recommended PCB layout guide in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISL94208IRZ can be configured for different battery chemistries by adjusting the voltage and current settings through the I2C interface. Renesas provides a battery configuration guide in the application note AN1964, which includes settings for common battery chemistries such as Li-ion, Li-polymer, and NiMH.
The ISL94208IRZ has an operating temperature range of -40°C to +85°C, but it can be extended to -40°C to +105°C with proper thermal management and derating. Refer to the datasheet for more information on thermal derating and design considerations.
The ISL94208IRZ has a built-in overcharge protection feature that can be enabled through the I2C interface. The device monitors the battery voltage and current, and will automatically disconnect the charging source when the battery reaches a predetermined voltage or current threshold. Refer to the datasheet for more information on configuring overcharge protection.
Yes, the ISL94208IRZ is designed to operate in high-vibration environments. Renesas has tested the device to withstand vibrations up to 10G peak acceleration, making it suitable for use in automotive, industrial, and other applications where vibration is a concern.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL94208IRZ Overview

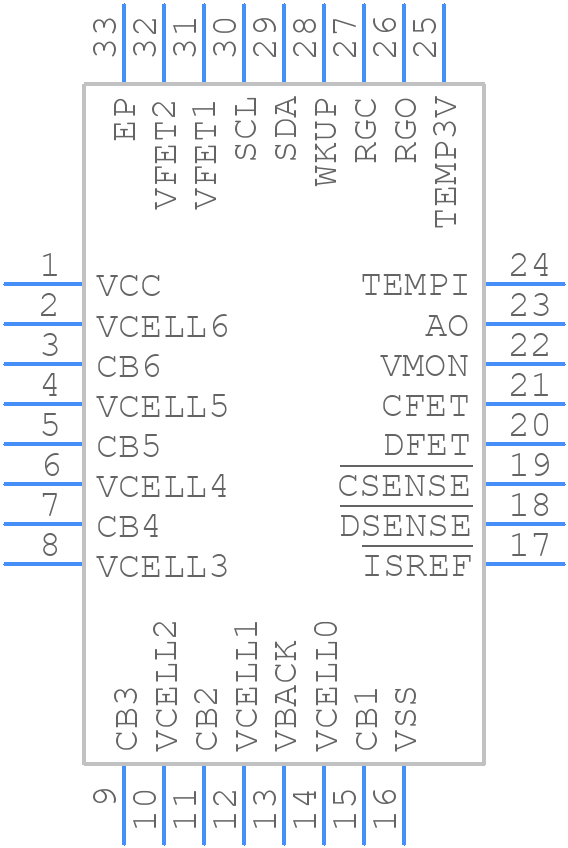

Use the download button to access the ISL94208IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL94,
or try a keyword search, such as Power Management Circuits
