Description:The ISL9440B and ISL9440C are quad-output synchronous buck controllers that integrate three PWM controllers and one low drop-out linear regulator controller, which are full featured and designed to provide multi-rail power for use in products such as cable and satellite set-top boxes, VoIP gateways, cable modems, and other home connectivity products as well as a variety of industrial and general purpose applications. Each output is adjustable down to 0. 8V. The PWMs are synchronized at 180° out-of-phase thu
Renesas provides a recommended PCB layout guide in the ISL9440BIRZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Renesas provides a component selection guide in the datasheet, which includes recommendations for inductors, capacitors, and resistors based on the specific application requirements. Additionally, the ISL9440BIRZ evaluation board user manual provides a bill of materials (BOM) that can be used as a reference.
The ISL9440BIRZ is rated for operation from -40°C to +105°C, but the maximum ambient temperature range may be limited by the specific application and the thermal management design. It's recommended to consult the datasheet and the thermal management guidelines in the evaluation board user manual for more information.
The ISL9440BIRZ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides more information on how to implement overcurrent protection, including the recommended component values and timing parameters.
The ISL9440BIRZ is rated for input voltages up to 28V, but it can be used in high-voltage applications with the use of external voltage regulators or voltage dividers. However, it's recommended to consult the datasheet and the application notes for more information on how to design a high-voltage application with the ISL9440BIRZ.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL9440BIRZ Overview

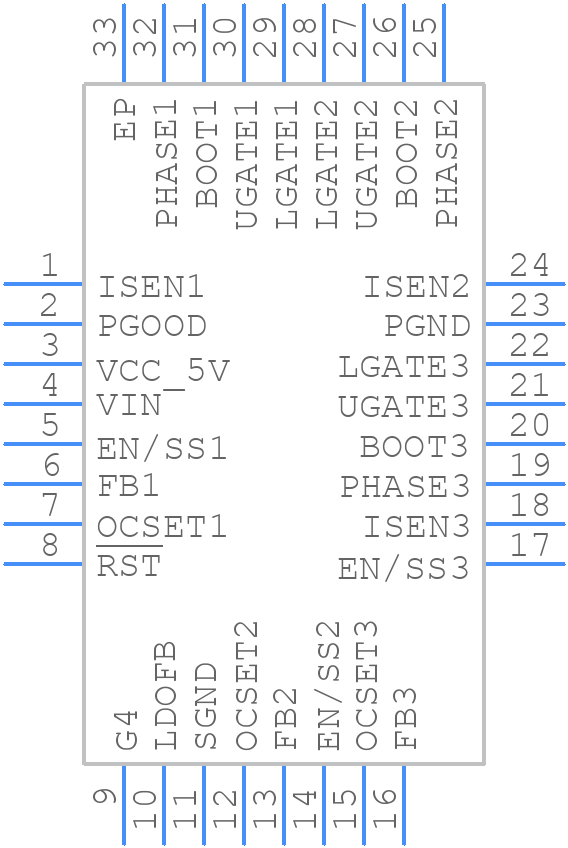

Use the download button to access the ISL9440BIRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL94,
or try a keyword search, such as Switching Regulator or Controllers
