ISL95338HRTZ-T - Renesas Electronics

Description: The ISL95338 is a bidirectional, buck-boost voltage regulator that provides buck-boost voltage regulation and protection features. The Renesas advanced R3™ Technology provides high light-load efficiency, fast transient response, and seamless DCM/CCM transitions. The ISL95338 takes input power from a wide range of DC power sources (such as conventional AC/DC ADPs, USB PD ports, and travel ADPs) and safely converts it to a regulated voltage up to 20V. The ISL95338 can also convert a wide range DC power source

Download ISL95338HRTZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

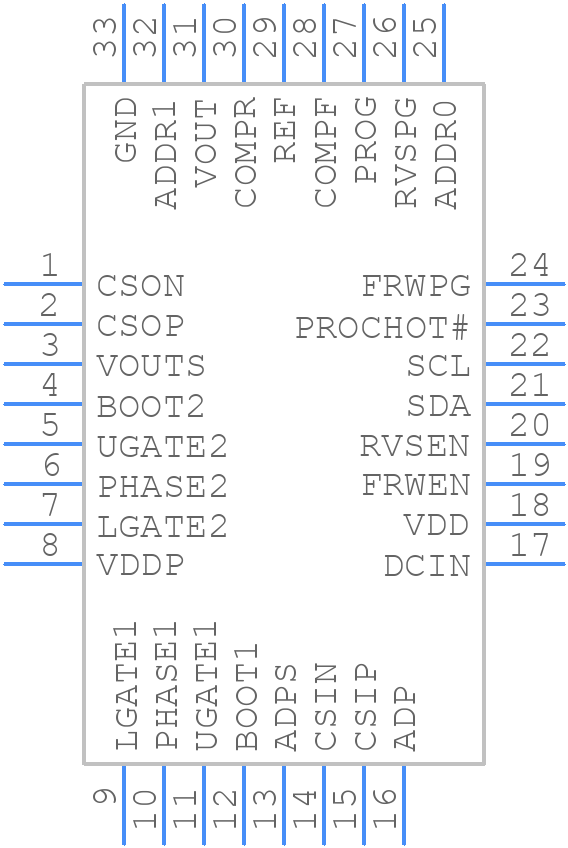

ISL95338HRTZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL95338HRTZ-T - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L32.4x4D 32 LEAD THIN QUAD FLAT NO-LEAD PLASTIC PACKAGE-1
click to zoom
3D Models
ISL95338HRTZ-T - Renesas Electronics - 3D model - Quad Flat No-Lead - L32.4x4D 32 LEAD THIN QUAD FLAT NO-LEAD PLASTIC PACKAGE-1
click to zoom

ISL95338HRTZ-T Details

  • Manufacturer Part Number:

    ISL95338HRTZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    L32.4X4D

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3.3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1150 kHz

  • Terminal Finish:

    Pure Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ISL95338HRTZ-T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for optimal performance. Renesas recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The input and output capacitors should be placed close to the IC, and the feedback resistors should be placed close to the output pins. A detailed layout guide can be found in the application note AN1995.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitors should be chosen to ensure a minimum ESR (Equivalent Series Resistance) of 10mΩ or less. The feedback resistors should be chosen to ensure a minimum bandwidth of 100kHz or higher.
  • Renesas recommends using a 10uF to 22uF X5R or X7R type ceramic capacitor for a low ESR and high ripple current rating. The input capacitor value should be chosen based on the input voltage and current requirements.
  • The output voltage accuracy can be calculated using the formula: VOUT = (VREF x (1 + (R2/R1))) / (1 + (R2/R1)). The output voltage accuracy is also dependent on the tolerance of the resistors and the reference voltage.
  • The ISL95338HRTZ-T can deliver up to 3A of output current. However, the maximum output current capability is dependent on the input voltage, output voltage, and the thermal conditions.
