ISL95338IRTZ - Renesas Electronics

Description: The ISL95338 is a bidirectional, buck-boost voltage regulator that provides buck-boost voltage regulation and protection features. The Renesas advanced R3™ Technology provides high light-load efficiency, fast transient response, and seamless DCM/CCM transitions. The ISL95338 takes input power from a wide range of DC power sources (such as conventional AC/DC ADPs, USB PD ports, and travel ADPs) and safely converts it to a regulated voltage up to 20V. The ISL95338 can also convert a wide range DC power source

Download ISL95338IRTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

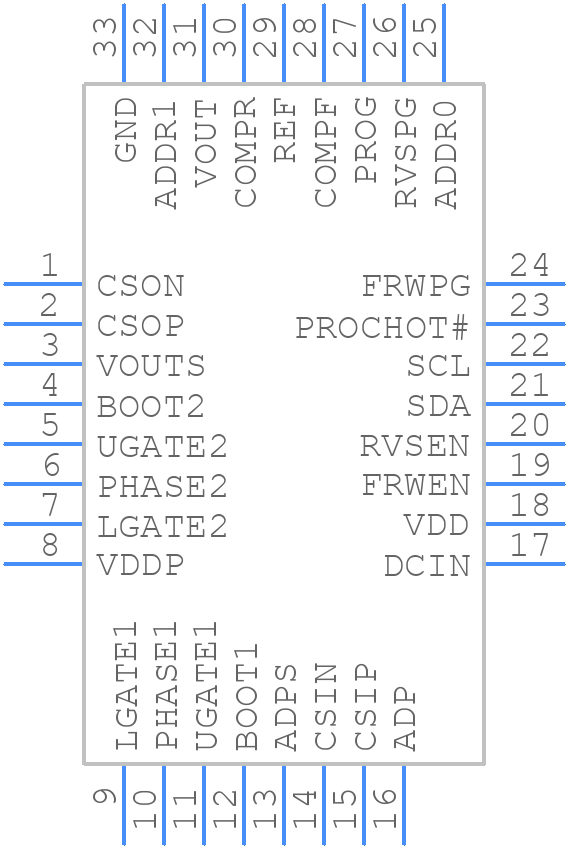

ISL95338IRTZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL95338IRTZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L32.4x4D 32 LEAD THIN QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL95338IRTZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L32.4x4D 32 LEAD THIN QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL95338IRTZ Details

  • Manufacturer Part Number:

    ISL95338IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    L32.4X4D

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3.3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1150 kHz

  • Terminal Finish:

    Pure Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ISL95338IRTZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The compensation network can be optimized using the Renesas Power Stage Designer tool, which provides a graphical interface to design and simulate the compensation network. The tool takes into account the specific application requirements and provides a recommended compensation network configuration.
  • The maximum junction temperature (Tj) for the ISL95338 is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • The ISL95338 is designed to operate with an input voltage range of 4.5V to 18V. While it may be possible to use it with a different input voltage range, it's not recommended as it may affect the device's performance, efficiency, and reliability. Renesas recommends using the device within the specified input voltage range for optimal performance.
  • Renesas provides a troubleshooting guide in their application note AN1964, which includes a step-by-step approach to identify and resolve common issues with the ISL95338, including oscillations and instability. The guide also provides tips for debugging and optimizing the design.
