Description:The ISL95808 is a high frequency, dual MOSFET driver with low shutdown current, optimized to drive two N-Channel power MOSFETs in a synchronous-rectified buck converter topology. It is especially suited for mobile computing applications that require high efficiency and excellent thermal performance. The driver, combined with an Intersil multiphase Buck PWM controller, forms a complete single-stage core-voltage regulator solution for advanced mobile microprocessors. The ISL95808 features a 4A typical sinking
A good PCB layout for the ISL95808IRZ-T involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of input and output capacitors for the ISL95808IRZ-T depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the specific requirements of the application.
The maximum ambient temperature range for the ISL95808IRZ-T is -40°C to +85°C. However, the device can operate at a junction temperature of up to 125°C. It's recommended to ensure good airflow and heat dissipation to prevent overheating.
The ISL95808IRZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold. Additionally, an external current sense resistor can be used to monitor the output current and implement overcurrent protection.
Yes, the ISL95808IRZ-T is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's recommended to follow proper design and manufacturing guidelines to ensure the reliability of the overall system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL95808IRZ-T Overview

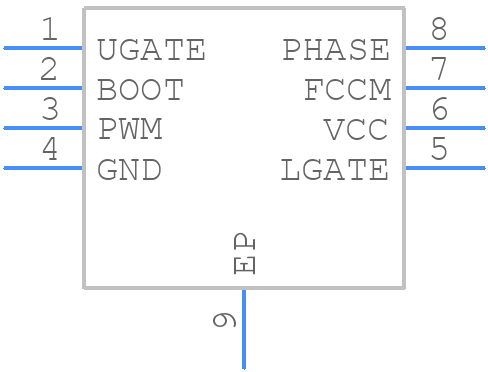

Use the download button to access the ISL95808IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL95,
or try a keyword search, such as Switching Regulator or Controllers
