Description:The ISLA216S is a series of low-power, high-performance, 16-bit, analog-to-digital converters. Designed with FemtoCharge™ technology on a standard CMOS process, the series supports sampling rates of up to 250MSPS. The ISLA216S is part of a pin-compatible family of 12-, 14-, and 16-bit A/Ds with maximum sample rates ranging from 130 to 500MSPS and shares the same analog core as Intersil's proven ISLA216P series of ADCs. The family minimizes power consumption while providing state-of-the art dynamic performan
The recommended PCB layout for optimal performance can be found in the ISLA216S13IR1Z evaluation board user manual or by contacting Renesas support. It typically involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages.
To ensure accurate voltage reference performance, it is essential to follow the recommended layout and decoupling guidelines, use a low-noise power supply, and minimize thermal gradients on the device. Additionally, the voltage reference output should be bypassed with a capacitor to reduce noise and improve stability.
The maximum allowed input voltage swing for the ISLA216S13IR1Z is typically limited by the supply voltage and the input common-mode range. It is recommended to consult the datasheet and application notes for specific guidance on input voltage swing and common-mode range limitations.
To optimize the ISLA216S13IR1Z for low power consumption, it is recommended to operate the device at the lowest possible supply voltage, reduce the clock frequency, and use the power-down mode when not in use. Additionally, the device's power consumption can be further reduced by optimizing the external circuitry and minimizing the input signal amplitude.
The recommended ESD protection measures for the ISLA216S13IR1Z include using ESD protection diodes on the input and output pins, following proper handling and storage procedures, and using an ESD-protected workstation during assembly and testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISLA216S13IR1Z Overview

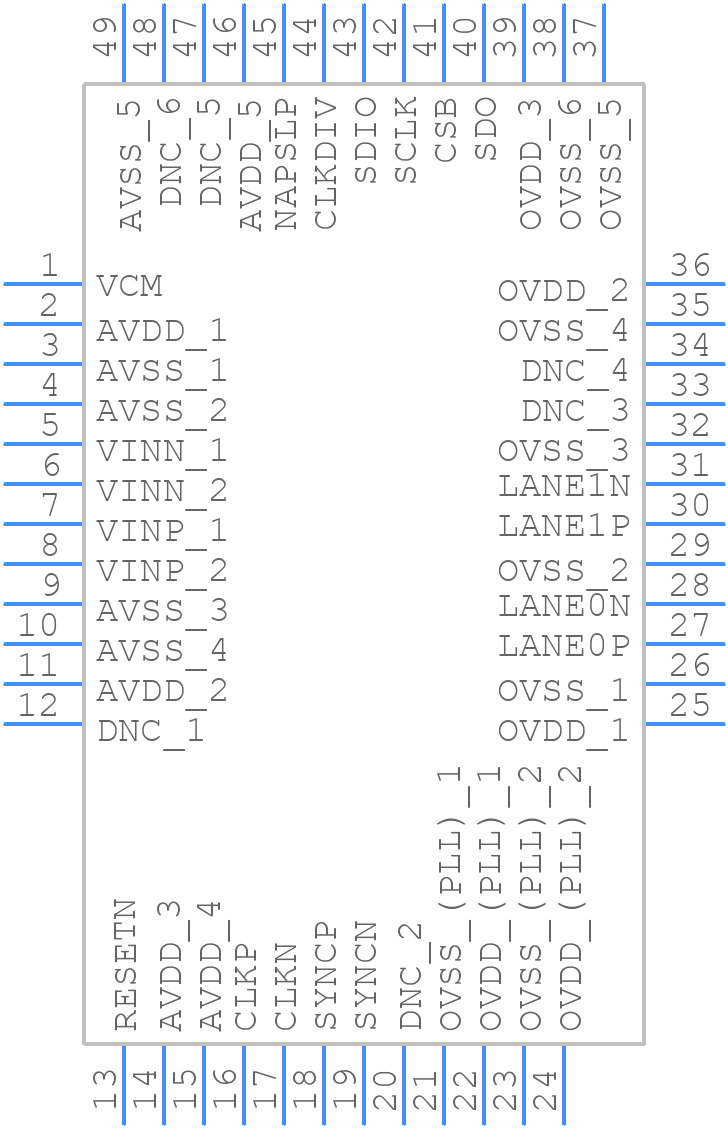

Use the download button to access the ISLA216S13IR1Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISLA2,
or try a keyword search, such as Analog to Digital Converters
