ISM330DLCTR - STMicroelectronics

Description: iNEMO 6-axis IMU: 3-axis accelerometer and 3-axis gyroscope with digital output for industrial applications

Download ISM330DLCTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

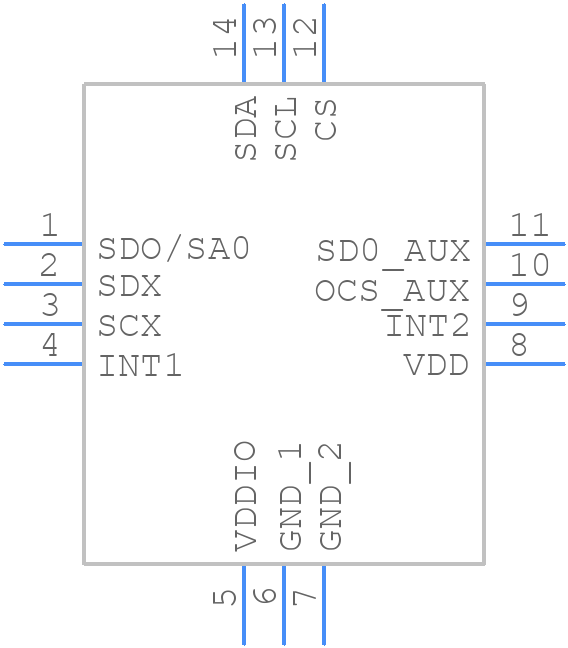

ISM330DLCTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ISM330DLCTR - STMicroelectronics PCB footprint - Other - Other - LGA-14_1
click to zoom
3D Models
ISM330DLCTR - STMicroelectronics - 3D model - Other - LGA-14_1
click to zoom

ISM330DLCTR Details

  • Manufacturer Part Number:

    ISM330DLCTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3.15

  • JESD-609 Code:

    e4

  • Sensors/Transducers Type:

    ACCELEROMETER/GYROSCOPE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ISM330DLCTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first power on the VDDIO pin, followed by the VDD pin. This ensures that the internal voltage regulators are properly initialized.
  • To configure the ISM330DLCTR for low-power mode, set the LP_MODE bit in the CTRL1 register to 1. This reduces the current consumption of the device.
  • The maximum sampling rate of the ISM330DLCTR is 6.67 kHz for the accelerometer and 1.67 kHz for the gyroscope.
  • Calibration of the ISM330DLCTR involves performing a series of movements and rotations to determine the sensor's offset and sensitivity. The calibration process can be done using the device's built-in self-test feature or through external calibration methods.
  • The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on specific events, such as data ready, FIFO threshold, or sensor interrupts.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISM330DLCTR Overview

Use the download button to access the ISM330DLCTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISM33, or try a keyword search, such as Other Sensors/Transducers
