ISM4343-WBM-L54-C - Inventek Systems

Description: Wi-Fi and Bluetooth Low Energy With on Board Antenna Module, 177dBm, 2.4 GHz, 3V ~ 3.6V, -40C ~ 85C

Download ISM4343-WBM-L54-C Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ISM4343-WBM-L54-C model

Email notifications will be applied after download.

Send part feedback

Symbol

ISM4343-WBM-L54-C - Inventek Systems - PCB symbol

PCB Footprints

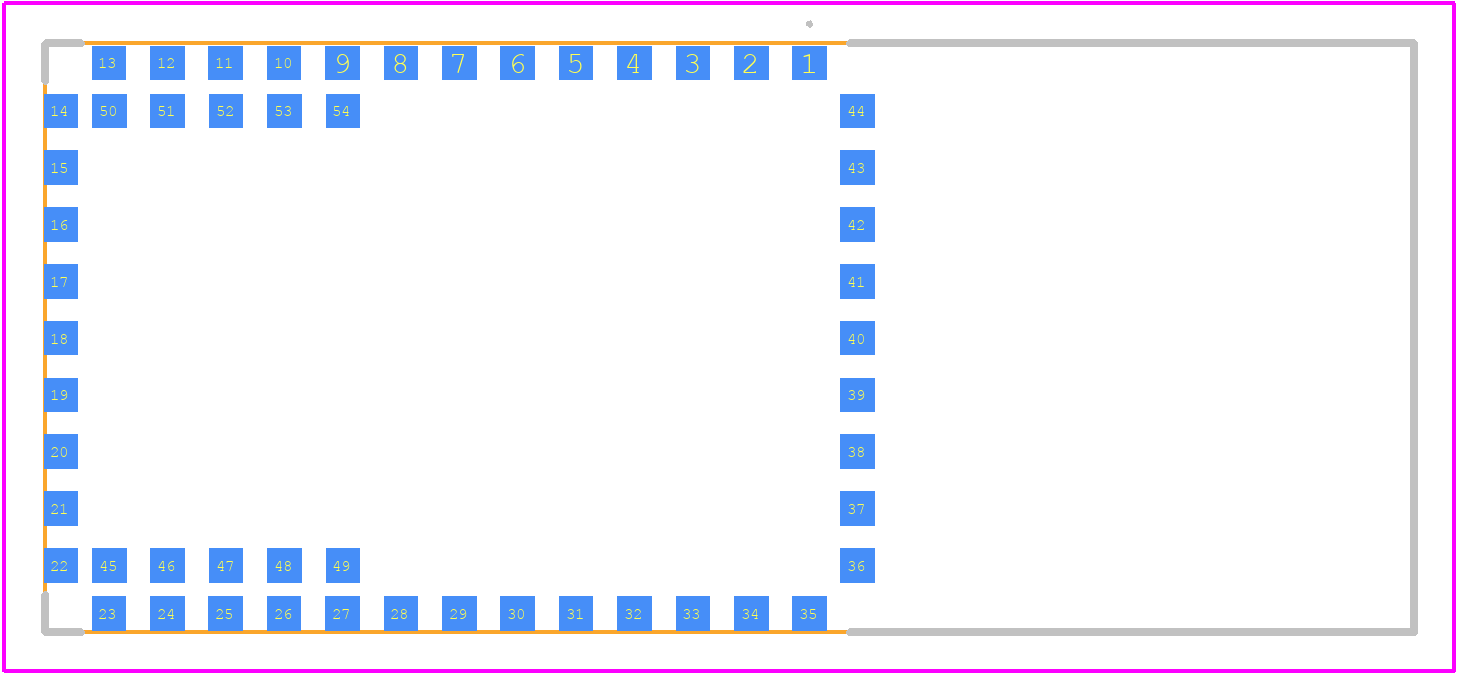

ISM4343-WBM-L54-C - Inventek Systems PCB footprint - Other - Other - 14.5 x 34mm 54 Pad LGA

3D Models

ISM4343-WBM-L54-C - Inventek Systems - 3D model - Other - 14.5 x 34mm 54 Pad LGA

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISM4343-WBM-L54-C
Part Number ISM4343-WBM-L54-C
Manufacturer Inventek Systems
Pin Count 54
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 14.5 x 34mm 54 Pad LGA
Released Date Mar 30, 2025
Last Modified Date Mar 30, 2025 11:45 AM UTC
