ISNA-0249-D104 - SCHURTER

Description: 3.5mH SCR and Triac Trigger (Encapsulated) Pulse Transformer 1:1 Surface Mount , -25°C ~ 100°C

Download ISNA-0249-D104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

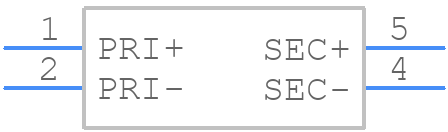

ISNA-0249-D104 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

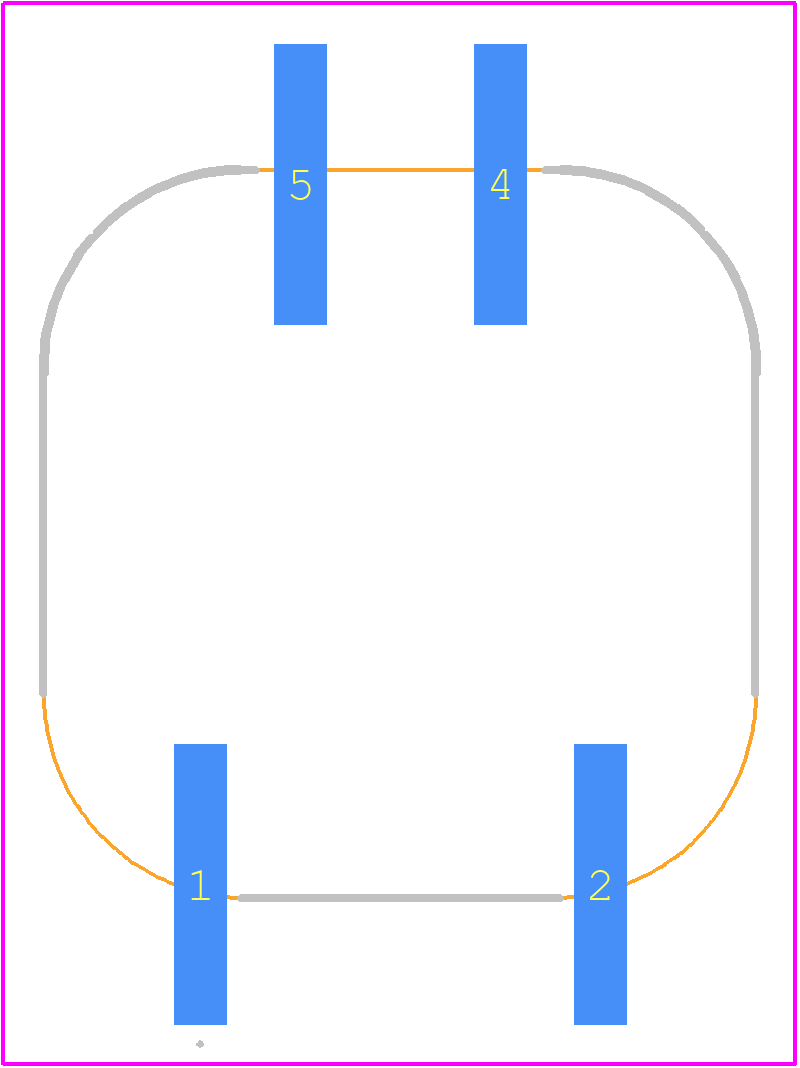

ISNA-0249-D104 - SCHURTER PCB footprint - Other - Other - 17.8mm x 18.2mm x 13.5mm
click to zoom
3D Models
ISNA-0249-D104 - SCHURTER - 3D model - Other - 17.8mm x 18.2mm x 13.5mm
click to zoom

ISNA-0249-D104 Details

  • Manufacturer Part Number:

    ISNA-0249-D104

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    40 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    7.48

  • Additional Feature:

    IEC 62368-1; UL

  • Application:

    GENERAL PURPOSE

  • ET Product-Min:

    300 V-us

  • Height:

    13.5 mm

  • Isolation Voltage:

    3500 V

  • JESD-609 Code:

    e3

  • Length:

    18.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    BULK

  • Primary Inductance:

    3500 µH

  • Pulse Rise Time-Max:

    1000 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    17.8 mm

ISNA-0249-D104 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of ISNA-0249-D104 is 0.5 Nm to 1.5 Nm, as specified by Schurter.
  • Yes, the ISNA-0249-D104 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The ISNA-0249-D104 has a rated operating temperature range of -40°C to 125°C, making it suitable for use in high-temperature applications.
  • The recommended wire size for the screw terminals of ISNA-0249-D104 is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
  • The ISNA-0249-D104 has a rated IP40 ingress protection rating, which means it is protected against solid objects larger than 1 mm, but not against water or moisture. It is not recommended for use in humid or wet environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISNA-0249-D104 Overview

Use the download button to access the ISNA-0249-D104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISNA-, or try a keyword search, such as Pulse/Datacom Transformers
