A good PCB layout for the ISO1042BQDWQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the ISO1042BQDWQ1, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins. Also, use a 1uF capacitor between the VCC and GND pins.
The ISO1042BQDWQ1 can support data rates up to 100 Mbps, but the actual achievable data rate depends on the specific application, cable length, and noise environment.
To troubleshoot issues with the ISO1042BQDWQ1, use a logic analyzer or oscilloscope to monitor the signal lines, check the power supply and decoupling, and verify the correct configuration of the device. Also, ensure that the cable and connectors are of good quality and properly terminated.
Yes, the ISO1042BQDWQ1 can be used in a multi-point or multi-drop configuration, but it requires careful consideration of the cable length, data rate, and noise environment to ensure reliable communication.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO1042BQDWQ1 Overview

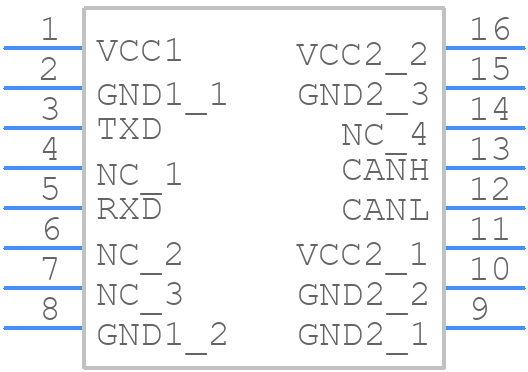

Use the download button to access the ISO1042BQDWQ1 schematic symbol, PCB footprint, and 3D model.
