A good PCB layout for the ISO1042BQDWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to place the device close to the isolation barrier and use a low-ESR capacitor for the VCC pin.
To ensure reliable communication, make sure to use the correct baud rate, data bits, and stop bits in the microcontroller's UART configuration. Also, ensure that the ISO1042BQDWRQ1 is properly configured for the desired communication mode (e.g., RS-232, RS-485, or RS-422).
The ISO1042BQDWRQ1 has a maximum junction temperature of 150°C. To ensure safe operation, ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device during soldering or rework. Also, follow the recommended thermal pad connection and PCB layout guidelines.
To troubleshoot issues with the ISO1042BQDWRQ1, start by checking the power supply voltage, signal integrity, and UART configuration. Use a logic analyzer or oscilloscope to verify the signal waveforms and timing. Also, consult the datasheet and application notes for troubleshooting guidelines and FAQs.
Yes, the ISO1042BQDWRQ1 has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO1042BQDWRQ1 Overview

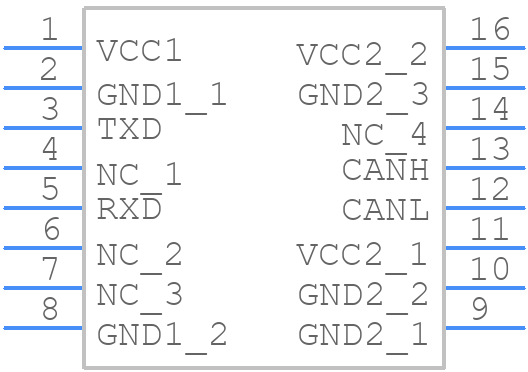

Use the download button to access the ISO1042BQDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO10,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
