ISO1042BQDWVQ1 - Texas Instruments

Description: CAN Interface IC ISO1042BQDWV/RQ1 - M.2 TCAN1042 AUTOB

Download ISO1042BQDWVQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

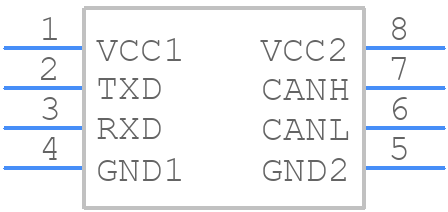

ISO1042BQDWVQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO1042BQDWVQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - ISO1042BQDWVQ1
click to zoom

ISO1042BQDWVQ1 Details

  • Manufacturer Part Number:

    ISO1042BQDWVQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

ISO1042BQDWVQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISO1042BQDWVQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a common mode filter on the input lines to reduce EMI.
  • To ensure proper power and decoupling, use a high-quality power supply with low ripple and noise, and decouple the VCC and GND pins with 0.1uF and 10uF capacitors. Additionally, use a 10nF capacitor to decouple the VCCIO pin.
  • The maximum cable length supported by the ISO1042BQDWVQ1 depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters for RS-485 and 10 meters for RS-232.
  • To troubleshoot communication issues, first check the power supply and decoupling, then verify the signal integrity and termination. Use an oscilloscope to check the signal waveforms and ensure that the signal levels are within the specified range. Also, check the baud rate and data format settings.
  • Yes, the ISO1042BQDWVQ1 is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in harsh environments.
