ISO1640DWR - Texas Instruments

Description: Digital Isolators Hot-swappable, robust-EMC bidirectional I2C isolator with bidirectional clock

Download ISO1640DWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

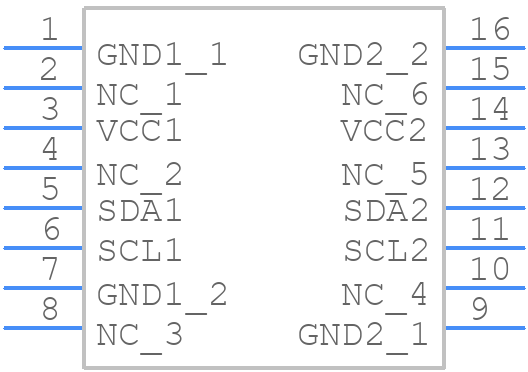

ISO1640DWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO1640DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW-16
click to zoom
3D Models
ISO1640DWR - Texas Instruments - 3D model - Small Outline Packages - DW-16
click to zoom

ISO1640DWR Details

  • Manufacturer Part Number:

    ISO1640DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ISO1640DWR Frequently Asked Questions (FAQs)

  • The maximum data rate of ISO1640DWR is 100 Mbps, making it suitable for high-speed applications.
  • ISO1640DWR has a high common-mode voltage range of ±100 V, allowing it to operate in noisy environments with high common-mode voltages.
  • Yes, ISO1640DWR is suitable for use in industrial control systems due to its high reliability, wide operating temperature range, and ability to withstand high levels of electromagnetic interference (EMI).
  • Yes, ISO1640DWR is designed to meet the requirements of safety-critical applications, such as those found in industrial control systems, medical devices, and automotive systems.
  • ISO1640DWR has built-in EMI filters and shielding, which help to reduce electromagnetic radiation and susceptibility, ensuring reliable operation in noisy environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO1640DWR Overview

Use the download button to access the ISO1640DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO16, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to ISO1640DWR

Showing 0 results
