ISO1641DWR - Texas Instruments

Description: Digital Isolators Hot-swappable, robust-EMC bidirectional I2C isolator with unidirectional clock

Download ISO1641DWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

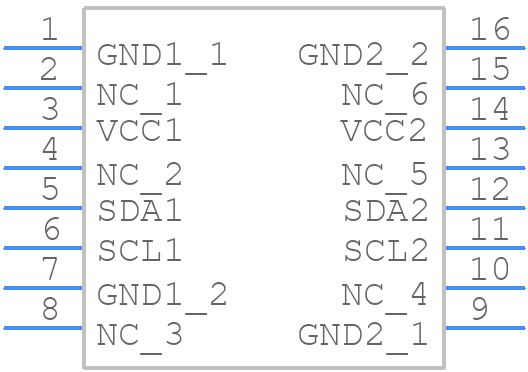

ISO1641DWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO1641DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
ISO1641DWR - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

ISO1641DWR Details

  • Manufacturer Part Number:

    ISO1641DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ISO1641DWR Frequently Asked Questions (FAQs)

  • The maximum data rate of ISO1641DWR is 100 Mbps, making it suitable for high-speed applications.
  • ISO1641DWR has a high common-mode voltage range of ±25 kV, making it suitable for applications with high electromagnetic interference (EMI).
  • Yes, ISO1641DWR is pin-to-pin compatible with other isolators from Texas Instruments, such as ISO1540 and ISO1541, making it easy to migrate between devices.
  • The typical power consumption of ISO1641DWR is 1.5 mA per channel, making it suitable for low-power applications.
  • Yes, ISO1641DWR has built-in protection against electrostatic discharge (ESD) up to ±8 kV, ensuring reliable operation in harsh environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO1641DWR Overview

Use the download button to access the ISO1641DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO16, or try a keyword search, such as Other Interface ICs
