ISO1H816G - Infineon

Description: Infineon ISO1H816G, 16-channel Intelligent Power Switch, High Side, 1.2A, 6.5V, 36-Pin, DSO-36

Download ISO1H816G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

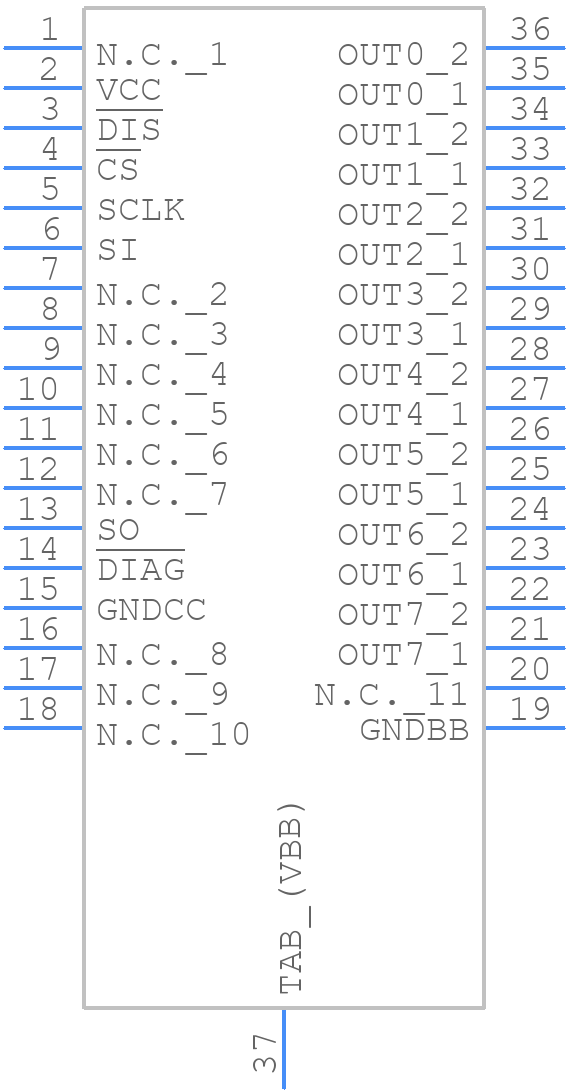

ISO1H816G - Infineon - PCB symbol
click to zoom
PCB Footprints

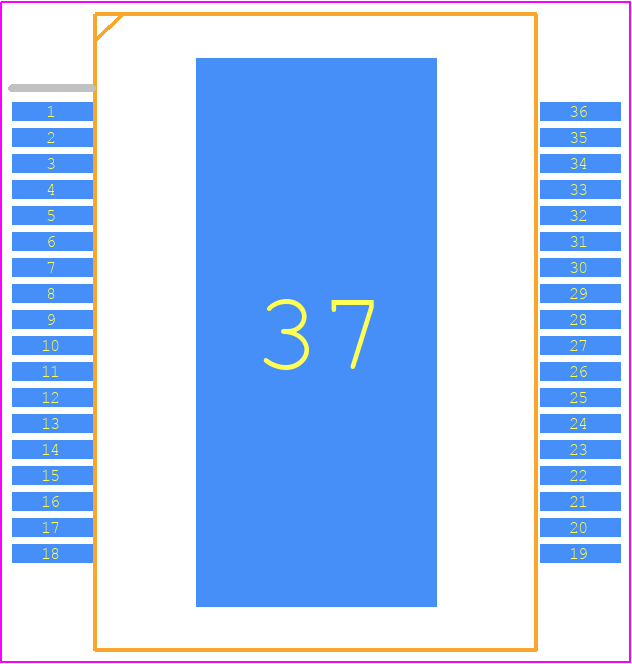

ISO1H816G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-36_1
click to zoom
3D Models
ISO1H816G - Infineon - 3D model - Small Outline Packages - PG-DSO-36_1
click to zoom

ISO1H816G Details

  • Manufacturer Part Number:

    ISO1H816G

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.12

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    36

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    4.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP36(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

ISO1H816G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ISO1H816G is -40°C to 125°C.
  • To ensure EMC, follow proper PCB design guidelines, use a shielded cable, and consider adding EMI filters or common-mode chokes to the design.
  • Follow the recommended layout and routing guidelines in the datasheet, keeping sensitive analog signals away from digital signals and using a solid ground plane to minimize noise.
  • Follow the recommended power-up and power-down sequences in the datasheet to ensure proper device operation and prevent damage.
  • Use a high-speed oscilloscope and a signal generator to test the device, and follow the recommended test and measurement methods outlined in the datasheet.
