ISO6720BQDRQ1 - Texas Instruments

Description: Automotive, general-purpose, dual-channel, 2/0 digital isolator

Download ISO6720BQDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

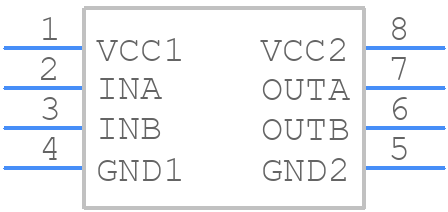

ISO6720BQDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO6720BQDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A height 1.75
click to zoom
3D Models
ISO6720BQDRQ1 - Texas Instruments - 3D model - Small Outline Packages - D0008A height 1.75
click to zoom

ISO6720BQDRQ1 Details

  • Manufacturer Part Number:

    ISO6720BQDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRE SUPPLY FROM 2.25V TO 5.5V

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

ISO6720BQDRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The capacitor selection guide in the datasheet provides more detailed information.
  • The ISO6720BQDRQ1 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal management and heat dissipation in the system design.
  • To ensure EMC compliance, follow the guidelines in the TI application note SLUA623, which provides recommendations for PCB layout, component selection, and shielding. Additionally, consider using EMI filters and shielding on the input and output lines.
  • The recommended input voltage range for the ISO6720BQDRQ1 is 2.7V to 5.5V. Operating the device outside this range may affect its performance, reliability, and longevity.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ISO6720BQDRQ1 Overview

Use the download button to access the ISO6720BQDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO67, or try a keyword search, such as Other Interface ICs
