ISO6720QDWVRQ1 - Texas Instruments

Description: Digital Isolators Automotive, general-purpose, dual-channel, 2/0 digital isolator

Download ISO6720QDWVRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

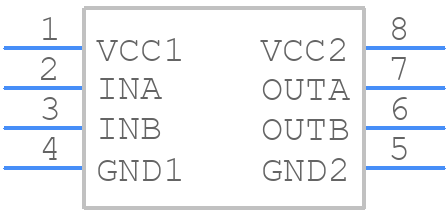

Symbol
ISO6720QDWVRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO6720QDWVRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A-1
click to zoom
3D Models
ISO6720QDWVRQ1 - Texas Instruments - 3D model - Small Outline Packages - DWV0008A-1
click to zoom

ISO6720QDWVRQ1 Details

  • Manufacturer Part Number:

    ISO6720QDWVRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRE SUPPLY FROM 2.25V TO 5.5V

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

ISO6720QDWVRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) close to the device.
  • Use a reliable communication protocol (e.g., SPI or UART) and ensure proper signal termination. Implement error-checking mechanisms, such as CRC or checksum, to detect data corruption. Use a common mode choke or ferrite bead to filter out noise.
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the ISO6720QDWVRQ1 supports cable lengths up to 100 meters for a single-ended interface and up to 300 meters for a differential interface.
  • Use a metal shield around the device, and ensure proper grounding and shielding of cables. Implement EMI filters or common mode chokes to reduce emissions. Follow proper PCB layout and routing guidelines to minimize radiation.
  • The device has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use a heat sink or thermal pad if necessary. Avoid overheating by keeping the device within the recommended operating temperature range.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ISO6720QDWVRQ1 Overview

Use the download button to access the ISO6720QDWVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO67, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
