Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISO6740FQDWRQ1 has built-in fault detection and protection features. To configure these features, refer to the device's datasheet and application notes, which provide detailed information on how to set up fault detection, overcurrent protection, and thermal shutdown.
The ISO6740FQDWRQ1 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure optimal performance.
The ISO6740FQDWRQ1 is designed for high-voltage applications up to 1000 V. However, it's crucial to follow the recommended operating conditions, including voltage ratings, and ensure proper isolation and creepage distances to prevent electrical shock and ensure safe operation.
To ensure EMC with the ISO6740FQDWRQ1, follow the recommended PCB layout and design guidelines, use proper shielding and filtering, and comply with relevant EMC standards and regulations, such as CISPR 22 and EN 55022.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO6740FQDWRQ1 Overview

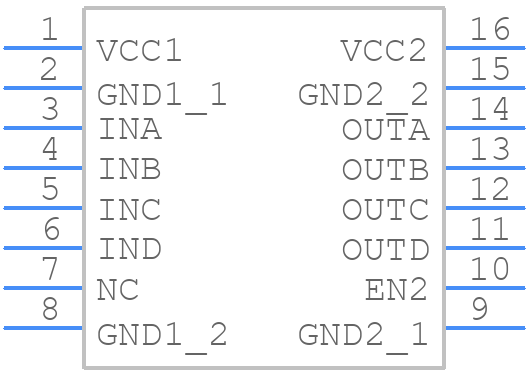

Use the download button to access the ISO6740FQDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO67,
or try a keyword search, such as Other Interface ICs
