Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISO6742QDWRQ1 has a flexible power supply configuration. You can configure the device for different voltage rails by adjusting the voltage supply pins (VCC1, VCC2, and VCC3) and the voltage regulator (VREG) pin. Refer to the datasheet and application notes for specific configuration guidelines.
The ISO6742QDWRQ1 supports data rates up to 100 Mbps, making it suitable for high-speed applications such as industrial automation, medical devices, and automotive systems.
To ensure EMC, follow the recommended PCB layout and design guidelines, use proper shielding and grounding, and implement EMI filtering techniques such as ferrite beads and capacitors. Additionally, consider using a metal shield or a shielded enclosure to reduce radiated emissions.
The ISO6742QDWRQ1 has an operating temperature range of -40°C to 125°C, making it suitable for use in harsh industrial and automotive environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO6742QDWRQ1 Overview

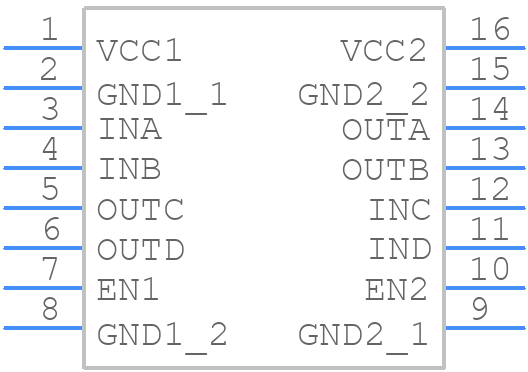

Use the download button to access the ISO6742QDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO67,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
