Texas Instruments provides a recommended PCB layout in the ISO6760DWR datasheet, but it's essential to follow good layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and avoiding thermal hotspots.
While the ISO6760DWR has a high CMTI of 100 kV/μs, it's essential to note that this rating is only valid for specific test conditions. In real-world applications, the device may not be able to withstand such high transients, and additional protection measures may be necessary.
Yes, the ISO6760DWR can be used in redundant or fault-tolerant systems, but it's essential to ensure that the device is properly configured and that the system is designed to handle faults and errors. Texas Instruments provides guidance on implementing redundancy and fault tolerance in their application notes.
To troubleshoot issues with the internal oscillator, check the oscillator circuitry, ensure proper power supply decoupling, and verify that the oscillator pins are not loaded or shorted. Additionally, consult the datasheet and application notes for guidance on oscillator configuration and troubleshooting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO6760DWR Overview

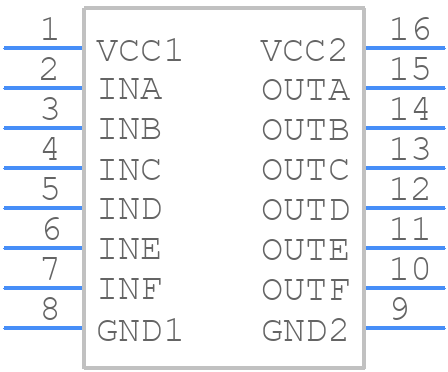

Use the download button to access the ISO6760DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO67,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
