- Part Number ISO6760QDWRQ1
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DW0016B
- Released Date Jun 28, 2023
- Last Modified Date Jun 28, 2023 7:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
ISO6760QDWRQ1 Details
-
Manufacturer Part Number:
ISO6760QDWRQ1
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Additional Feature:
ALSO REQUIRE SUPPLY FROM 2.25V TO 5.5V
ISO6760QDWRQ1 Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to reduce the device temperature.
-
The ISO6760QDWRQ1 is a safety-certified device, meeting the requirements of IEC 60747-5-5 (VDE 0884-5-5) and UL 1577. However, it's essential to follow the safety guidelines and recommendations outlined in the datasheet and application notes to ensure the device is used in a way that maintains its safety certification.
-
Texas Instruments provides a troubleshooting guide in the application note SLUA624, which covers common issues, diagnostic techniques, and repair procedures. Additionally, consider using the TI E2E community forum or contacting TI's technical support for further assistance.
-
The ISO6760QDWRQ1 is designed to operate in systems with multiple power domains. However, it's essential to ensure that the device is properly powered and that the power domains are properly isolated to prevent voltage backflow and other issues. Follow the recommended power-up and power-down sequences outlined in the datasheet.
Trust Checks
Community Provided
System Verified
Community Approved
ISO6760QDWRQ1 Overview

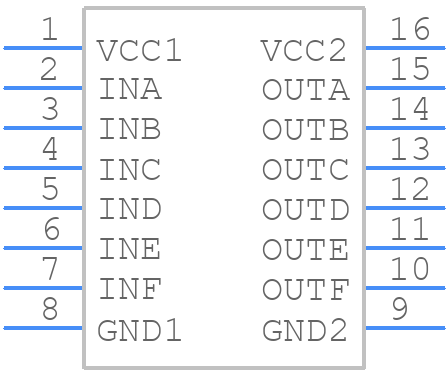

Use the download button to access the ISO6760QDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO67,
or try a keyword search, such as Other Interface ICs
