Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
According to the datasheet, the ISO6763FDWR requires a 3.3V or 5V power supply, and it's essential to decouple the power pins with 0.1uF and 10uF capacitors to minimize noise and ensure stable operation. Additionally, it's recommended to use a low-ESR capacitor for the 10uF decoupling capacitor.
The ISO6763FDWR supports cable lengths up to 100 meters, but the actual cable length may vary depending on the specific application, cable quality, and environmental conditions. It's recommended to consult the application note SLUA623 for more information on cable length and signal integrity.
The ISO6763FDWR has built-in fault detection and reporting capabilities. To configure fault detection, engineers can use the device's fault detection pins (FDx) and fault reporting pins (FRx). The device can be configured to report faults such as overvoltage, undervoltage, and overtemperature through the fault reporting pins. Consult the datasheet and application note SLUA623 for more information on fault detection and reporting.
The ISO6763FDWR has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, engineers should implement a thermal management strategy that includes heat sinking, thermal vias, and thermal pads. The application note SLUA623 provides guidelines for thermal management and heat sinking.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO6763FDWR Overview

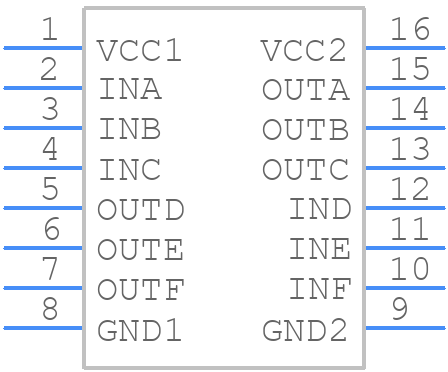

Use the download button to access the ISO6763FDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO67,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
